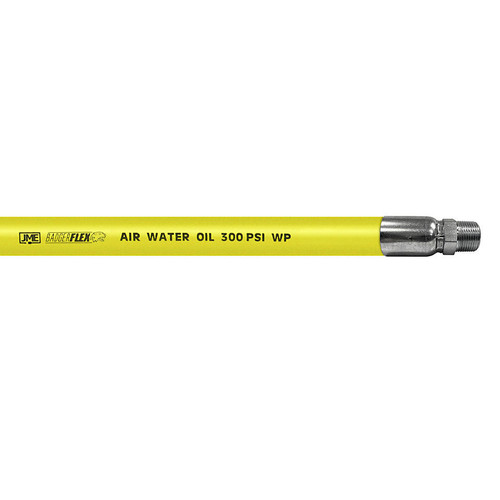

BadgerFlex 3/4 in. Air & Multipurpose Hose Assembly w/ Crimped Male NPT Ends - Yellow

BadgerFlex 3/4 in. Air & Multipurpose Hose Assembly w/ Crimped Male NPT Ends - Yellow Description

The BadgerFlex 3/4 in. Air & Multipurpose Hose Assembly is designed for demanding air, water, oil, and select chemical applications where durability and performance are critical. Constructed with a high-quality NBR tube and reinforced textile plies, this hose assembly provides excellent abrasion resistance, flexibility, and long service life in severe industrial environments. The yellow NBR/PVC cover enhances visibility while offering resistance to wear, making the assembly suitable for use in construction, mining, air drilling, poultry plants, and other heavy-duty operations. Factory-crimped male NPT ends ensure secure connections and reliable performance under pressure.

Features

• Premium Multipurpose Design: Suitable for air, water, oil, and compatible fluid transfer applications.
• High Abrasion Resistance: Yellow NBR/PVC cover enhances durability in harsh environments.
• Robust Reinforcement: Textile plies improve strength and pressure capability.
• Secure End Connections: Crimped male NPT ends provide reliable, leak-resistant performance.
• Wide Temperature Capability: Designed to perform across a broad temperature range.

Specifications

• Applications: Air, Water, Oil
• Brand: BadgerFlex
• Burst Pressure: 2000 PSI
• Color: Yellow
• Cover Material: NBR/PVC
• Ends: Crimped Male NPT
• Inner Diameter: 3/4 in.
• Outer Diameter: 1.18 in.
• Part Number: JME-KLEMHD34-19-Y400RL
• Reinforcement: Textile Plies
• Safety Factor: 4:1
• Temperature Range: -22°F to 212°F (-30°C to 100°C)
• Tube Material: NBR
• Weight Per Foot: 1.4 lb
• Working Pressure: 500 PSI
