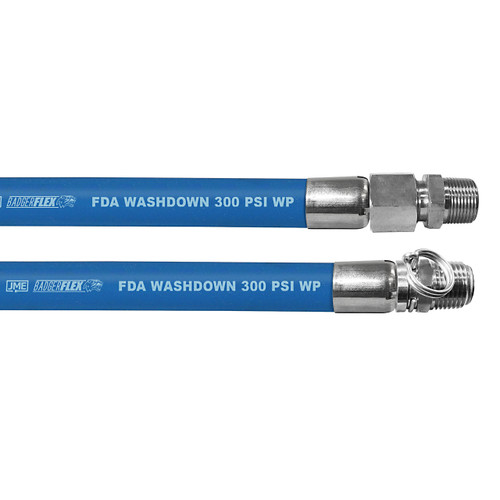

BadgerFlex 3/4 in. Washdown Hose Assembly w/ Stainless Super Klean Ends - Blue

BadgerFlex 3/4 in. Washdown Hose Assembly w/ Stainless Super Klean Ends - Blue Description

The BadgerFlex 3/4 in. Washdown Hose Assembly with Stainless Super Klean Ends is designed for demanding washdown applications where durability, flexibility, and sanitation are required. This hose assembly is suitable for industrial, agricultural, and food-related washdown environments requiring reliable water transfer. It features a blue NBR/PVC cover for abrasion resistance and easy identification, paired with a white FDA-grade NBR tube for clean water service. Reinforced with textile plies, this assembly delivers consistent performance under pressure while maintaining flexibility across a wide temperature range.

Features

• Washdown Application: Designed for general service washdown operations in industrial and agricultural environments.
• FDA-Grade Tube: White NBR tube material suitable for food-quality water applications.
• Durable Cover: Blue NBR/PVC cover provides abrasion resistance and long service life.
• Stainless Super Klean Ends: Stainless steel fittings offer corrosion resistance and secure connections.
• Reinforced Construction: Textile plies enhance strength and pressure handling capabilities.

Specifications

• Applications: Washdown, Water, Food Quality
• Brand: BadgerFlex
• Burst Pressure: 1200 PSI (82.7 BAR)
• Color: Blue
• Cover Material: Blue NBR/PVC
• Ends: Stainless Super Klean Ends
• Inner Diameter: 3/4 in.
• Outer Diameter: 1.19 in.
• Part Number: ABFHWASHDOWNBLU075X10SDSS
• Reinforcement: Textile Plies
• Safety Factor: 4:1
• Temperature Range: -22°F to 212°F (-30°C to 100°C)
• Tube Material: White NBR (FDA)
• Weight Per Foot: 1.4 lb.
• Working Pressure: 300 PSI (20.6 BAR)
