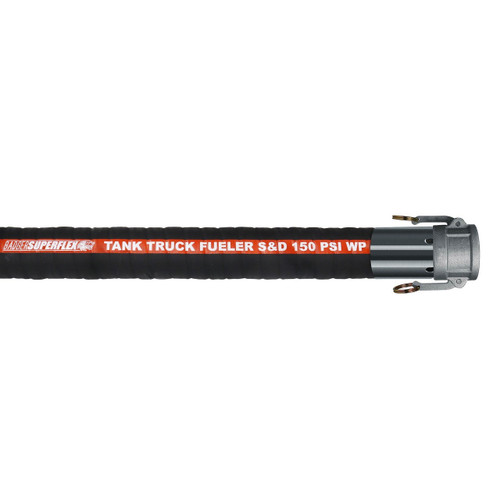

BadgerFlex 1 1/2 in. Fuel Transfer Hose Assembly w/ Part C Female Couplers - Black

BadgerFlex 1 1/2 in. Fuel Transfer Hose Assembly with Part C Female Couplers

The BadgerFlex 1 1/2 in. Fuel Transfer Hose Assembly is designed for demanding fuel transfer applications in tank truck and in-plant operations. This hose assembly is suitable for transferring gasoline, oil, and other petroleum-based products containing up to 50% aromatic content. Built to handle pressure, gravity flow, or full suction service, it delivers reliable performance in commercial and industrial environments. The hose features durable construction materials that provide excellent resistance to petroleum products while maintaining flexibility and strength across a wide temperature range. Each assembly is precision-cut and coupled to ensure consistent quality and dependable service life.

Features

• Fuel Transfer Capabilities: Designed for gasoline, oil, and petroleum-based products up to 50% aromatic content.
• Heavy-Duty Construction: Built for pressure, gravity flow, and full suction applications.
• Flexible Design: Maintains flexibility for easier handling and installation.
• Reinforced Structure: Multi-ply construction with helix wire for added strength.
• Quick-Connect Ends: Equipped with Part C female couplers for secure connections.

Specifications

• Applications: Fuel Transfer, Petroleum Transfer
• Brand: BadgerFlex
• Burst Pressure: 600 PSI
• Color: Yellow
• Cover Material: Nitrile-PVC
• Ends: Part C Female Couplers
• Inner Diameter: 1 1/2 in.
• Outer Diameter: 1.93 in.
• Part Number: ABFHTTF150X10CALXCAL
• Reinforcement: 2 Ply + Helix Wire
• Safety Factor: 4:1
• Temperature Range: -40°F to 180°F (-40°C to 82.2°C)
• Tube Material: Nitrile
• Weight Per Foot: 2.78 lb
• Working Pressure: 150 PSI
