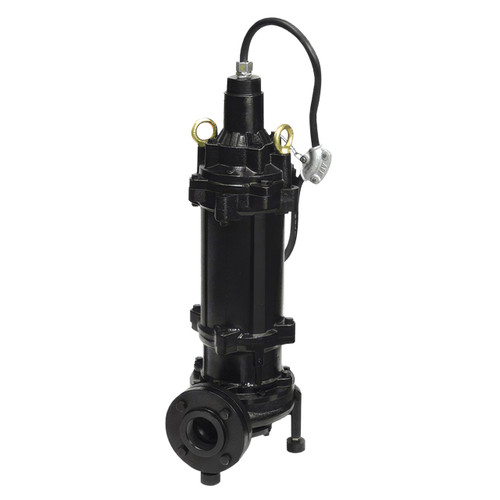

Webtrol MVGC 5 HP Cast Iron Grinder Pump 460 V

SKU:
WEBMVGC50DR
Manufacturer:
Webtrol
Horsepower:
5 HP
Material:
Cast Iron
Flow-Rate:
97 GPM
Cord:
20 ft.
Voltage:
460 V
Product Type:
Sewage Pump
Weight:
250.00 LBS
$2,698.15
Adding to cart… The item has been added

Description

The WEBTROL MVGC Series grinder pumps use a hardened 304SS cutter to effectively macerate sewage into a fine slurry, providing you with reliable solutions for commercial applications.

Features

  • All cast iron construction
  • Recessed vortex cast iron impeller
  • Hardened, anti-wear grinding ring and cutter
  • Double mechanical seal for better motor protection
  • 3PH, 3450 RPM, 2 pole motor
  • Oil filled continuous duty motor
  • 20 ft. power cord
  • Potted epoxy cord seal
  • Available with 2.5 in. flange connection
  • Available in prepackaged basin

Specifications

  • HP: 5
  • Volts: 460
  • Discharge: 2.5 in.
  • Cord Length: 20 ft.
  • Capacity: Up to 97 GPM
  • Head: Up to 195 ft.
  • Temperature: Up to 104° F
Please see attached Specification Sheet for more information.

Downloads

Specification Sheet (PDF Download)

Product Literature (PDF Download)

Installation Instruction (PDF Download)
