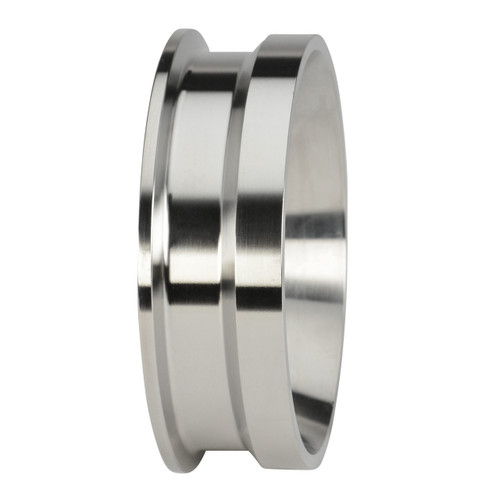

Wayland Ind. W619MPX Clamp x Schedule 10 Adapter 316L Stainless Steel

Description

316L Stainless Steel Clamp x Schedule 10S Weld Adapter for Sanitary & Industrial Piping Systems

Wayland Industries' W619MPX bridges sanitary tri-clamp connections and Schedule 10S weld pipe ends, making it the right choice wherever hygienic tubing transitions to heavier-wall industrial piping. Made from 316L stainless steel, this adapter resists chloride and the glycol-based fluids commonly used as coolants in data center liquid cooling infrastructure. The smooth 32 Ra ID/OD surface finish prevents scale, biofilm, and particulate buildup, keeping coolant pathways clear in direct-to-chip and immersion cooling loops where contamination or flow restriction can compromise thermal management of high-density AI and HPC hardware.

The heavier Schedule 10S wall accommodates high pressure and thermal cycling without sacrificing the quick-disconnect accessibility of a clamp end. This is an advantage in any system that needs regular cleaning, inspection, or reconfiguration. These pipe size adapters have 3-A Sanitary Certification and are suitable for food and beverage, pharmaceutical, and biotech applications where CIP compliance is mandatory.

Key specifications:

• Material: 316L stainless steel
• Size range: 1" through 4"
• Surface finish: 32 Ra ID/OD
• Wall thickness: 0.065" (1/2"–3"), 0.083" (4"), 0.109" (6")
• Certification: 3-A 63-04 #3756
• End connections: Sanitary clamp x Schedule 10S weld

Specifications

• Size Range: 1/2" through 8"
• Alloys Available: 304 & 316L
• Surface Finish: 32 Ra ID/OD
• Wall Thickness: 1/2" through 3" 0.065" 4" 0.083" 6" & 8" 0.109"
• Certification: 3A 63-04 #3756 (Sanitary Fittings)

Downloads

Specification Sheet (PDF Download)
