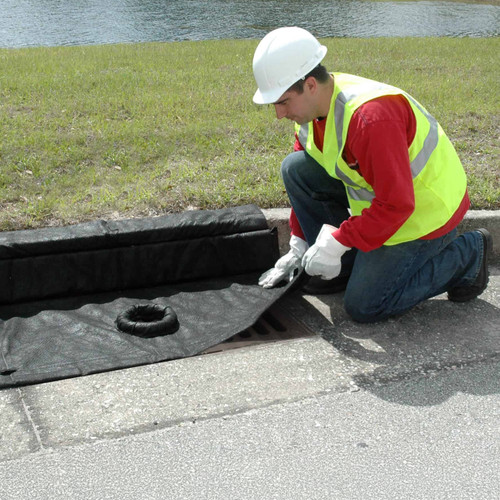

UltraTech Ultra-Inlet Guard Plus Storm Drain Filter - Curb-Style, 48 x 24

UltraTech's Ultra-Inlet Guard Plus® curb-style line of stormwater inlet guards are recipients of the Plant Engineering Product of the Year. This degree of prestige alone should make the Ultra-Inlet Guard Plus® curb-style model be at the top of your stormwater drain protection product wish list. Made of heavy-duty geotextile material, the Ultra-Inlet Guard Plus® curb-style model is as durable and easy to install as it gets. The addition of strong earth mineral magnets into each corner of the Ultra-Inlet Guard makes for seamless, simplified installation. The Ultra-Inlet Guard Plus® is the perfect option to keep debris and sediment from clogging your stormwater drains during and after heavy periods of rainfall. Shop the JME site for the best variety of UltraTech stormwater products around.

Features

• Keeps debris, trash, dirt, and sand out of stormwater drains.
• Built-in earth metal magnets create easy installation (no heavy lifting of catch basin grates).
• Available in several sizes and custom sizes. Mainly for street drains, trench drains, and combination drains.
• Heavy-duty material (polypropylene geotextile, non-woven) helps remove oil and other hydrocarbons from stormwater drains and allows up to 92 gal/ft2/min.
• Low-profile design allows for vehicles to drive over and does not obstruct traffic or personnel.
• Compliant with: Stormwater Management Regulation 40 CFR 122.26, National Pollutant Discharge Elimination System (NPDES), Total Maximum Daily Load (TMDL).

Specifications

• Material: Non-woven polypropylene geotextile
• Grab Tensile: 297 x 223 lbs.
• Grab Elongation: 58/59 %
• Puncture: 99 lbs.
• Trapezoid Tear: 81 x 75 lbs.
• AOS: 60 US Sieve
• Flow Rate: 92 gal/ft²/min.
• Permittivity: 2.60 sec.
• Shipping Dimensions: 50 in. x 10 in. x 4 in.
