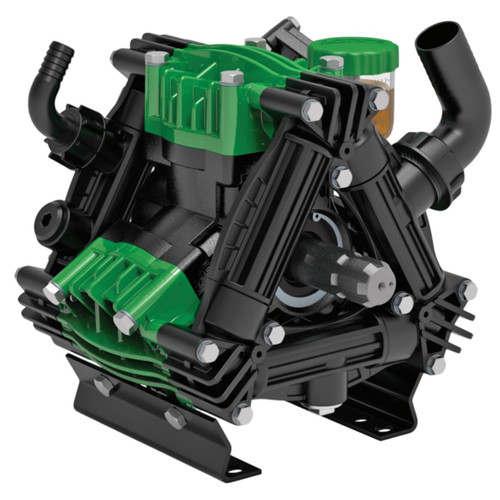

Udor ZETA 120 1C 1 1/2 in. Diaphragm Pump, 3 cylinders, 31 GPM, 300 PSI

Udor ZETA 120 1C 1 1/2 in. Diaphragm Pump, 3 cylinders, 31 GPM, 300 PSI

The Udor ZETA 120 1C is a reliable, low-pressure diaphragm pump designed for horticultural and agricultural spraying applications. Built with anodized aluminum bodies, plasticized aluminum heads, stainless steel valves, and glass-filled nylon manifolds, this pump offers superior durability and corrosion resistance. Delivering a maximum flow of 31 GPM and pressure up to 300 PSI, the ZETA 120 ensures efficient performance for medium to large-scale spraying tasks. It features a 1-3/8 inch 6-spline male PTO shaft for secure power transfer, making it an excellent choice for professional spraying systems.

Industries: Lawn Care, Fire Fighting, Orchard/Nursery Spraying, De-Mucking, Decontamination, White Washing, Aquatic Plant Control, Spray Insulation, Hydrostatic Testing, Fluid Transfer, Chlorine Application, Crop Spraying, Fertilizer Application, Aircraft De-icing, Pest Control, Soft Wash

Features

• Durable Construction: Anodized aluminum body and stainless-steel components for long-lasting performance.
• High-Performance Output: Provides up to 31 GPM and 300 PSI for efficient spraying operations.
• Versatile Applications: Ideal for horticultural and agricultural spraying tasks.
• Corrosion-Resistant Design: Glass-filled nylon manifolds and plasticized aluminum heads for added protection.
• PTO Drive Compatibility: Equipped with a 1-3/8 inch 6-spline male PTO shaft for secure connection.

Specifications

• Bar: 20
• Dimensions: 13 in. L x 11 in. W x 12 in. H
• Drive Configuration: 1-3/8 in. 6-Spline Male PTO Shaft
• GPM: 31
• Inlet Port: 1-1/2 in. HB
• Lubrication: 40 oz. Udor Lube 40W Premium Pump Oil
• Maximum Pressure: 300 PSI
• Maximum RPM: 550
• Model: ZETA 120 1C
• Outlet Port: 3/4 in. HB

Downloads

Specification Sheet (PDF Download)
