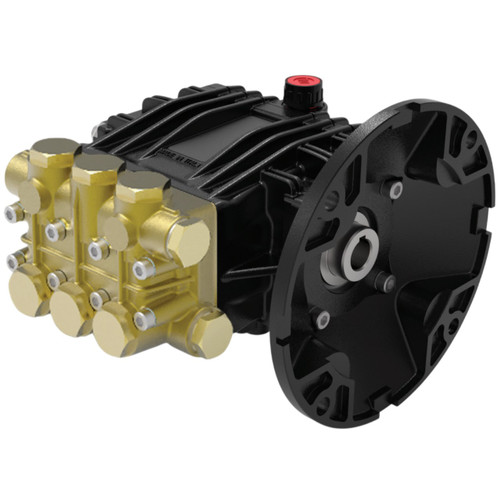

Udor PNL 2.0/20 Z Plunger Pump Direct Drive W/ Electric Motor, 2 GPM, 2030 PSI

Udor PNL 2.0/20 Z Plunger Pump Direct Drive W/ Electric Motor, 2 GPM, 2030 PSI

The Udor PNL 2.0/20 Z is a compact, industrial-grade plunger pump designed for direct drive applications with electric motors. Delivering a flow rate of 2 GPM and pressures up to 2030 PSI, this pump is ideal for general pressure cleaning, sewer jetting, vehicle wash systems, and fire-fighting applications. Built with a brass manifold, solid ceramic plungers, and stainless steel check valves, it ensures durability and reliable performance. The pump features a 5/8 inch hollow shaft with NEMA 56C mounting flange, operates at 3400 RPM, and includes a vented oil bath crankcase for smooth operation.

Industries: Pressure Washing, Truck Wash, Car Wash, Food Processing, In Plant Cleaning Systems, Graffiti Removal, Fire Fighting, Sewer Jetting, Hydro Excavating, Reverse Osmosis, Desalination Process, De-Mucking, Misting/Fogging/Cooling, Air Conditioning Cleaning, Ground and Sod Aeration, Machine Tool Coolant, Tree Debarking, Directional Boring and Drilling, Hydrostatic Testing, Soft Wash

Features

• Durable Construction: Brass manifold; heat-treated crankshaft for strength
• High-Performance Components: Solid ceramic plungers; stainless steel piston guides and check valves
• Optimized Design: Replaceable PTFE-coated body guides; heavy-duty flat base high-pressure seals
• Maintenance-Friendly: Dual oil sight gauges; vented oil bath crankcase for proper lubrication
• Temperature & Pressure Handling: Maximum fluid temperature of 160°F; rated for up to 2030 PSI

Specifications

• Crankshaft Stroke: 5.0mm
• GPM: 2.0
• Inlet Size: 3/8 in. BSP-F
• Lubrication: 10.25 oz Udor Lube
• Max Pressure: 2030 PSI / 140 Bar
• Max Speed: 3400 RPM
• Model: PNL 2.0/20 Z
• Outlet Size: 3/8 in. BSP-F
• Plunger Diameter: 15mm
• Power Requirement: 3.0 HP Electric
• Seal Kit: 6061.07
• Valve Kit: 6061.01

Downloads

Specification Sheet (PDF Download)
