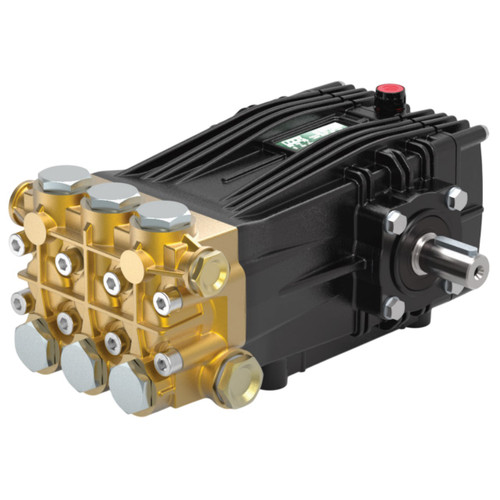

Udor CKC 38/20 S Plunger Pump W/ 24mm Keyed Solid Shaft, 10 GPM, 2900 PSI

Udor CKC 38/20 S Plunger Pump W/ 24mm Keyed Solid Shaft, 10 GPM, 2900 PSI

The Udor CKC 38/20 S Plunger Pump is a heavy-duty, high-performance pump designed for industrial and commercial applications requiring consistent pressure and durability. Delivering a maximum flow of 10 GPM and a pressure rating of 2900 PSI, this pump operates at 1450 RPM with a 24mm keyed solid shaft for reliable power transmission. Built with a reinforced brass manifold, stainless steel piston guides, and heat-treated crankshaft, it ensures long-lasting performance under demanding conditions. Ideal for pressure cleaning, sewer jetting, vehicle wash systems, hydro-excavation, and UHP fire fighting, the CKC Series combines strength, precision, and efficiency for superior results.

Industries: Pressure Washing, Truck Wash, Car Wash, Food Processing, In Plant Cleaning Systems, Graffiti Removal, Fire Fighting, Sewer Jetting, Hydro Excavating, Reverse Osmosis, Desalination Process, De-Mucking, Misting/Fogging/Cooling, Air Conditioning Cleaning, Ground and Sod Aeration, Machine Tool Coolant, Tree Debarking, Directional Boring and Drilling, Hydrostatic Testing, Soft Wash

Features

• Heavy-Duty Brass Manifold: External and internal bracing for maximum strength.
• Durable Components: Bronze or aluminum connecting rods and heat-treated crankshaft for extended life.
• Enhanced Valve Design: Large diameter brass or stainless steel valve caps with increased thread depth.
• Reinforced Ports: Inlet and discharge ports with reinforcing rings for added durability.
• Industrial Bearings: Tapered roller bearings for smooth operation and longevity.

Specifications

• Bar: 200
• Crankshaft Stroke/Code: 15.0mm/V
• GPM: 10.0
• Inlet: 3/4 in. BSP-F
• Lubrication: 34.5 oz Udor Lube
• Max Fluid Temp: 160°F
• Max Flow: 10.0 GPM / 38.0 L/min
• Max Pressure: 2900 PSI
• Model: CKC 38/20 S
• Outlet: 1/2 in. BSP-F
• Plunger Dia.: 28mm
• Power: 19.5 EBHP
• Power Requirement: 19.5 HP Electric
• Rated Pump Speed: 1450 RPM
• Seal Kit: 6061.12
• Shaft: 24mm Keyed Solid Shaft
• Valve Kit: 6061.03

Downloads

Specification Sheet (PDF Download)
