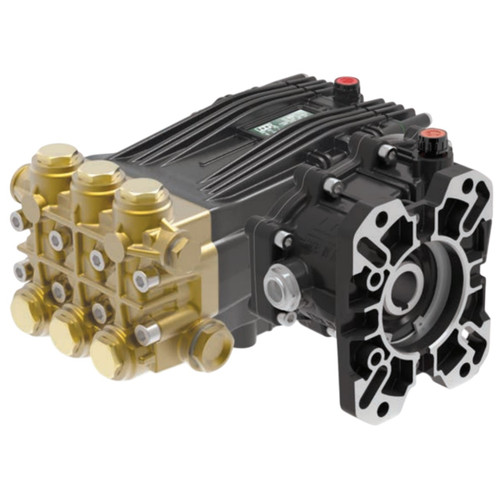

Udor CKC 17/36 GR Plunger Pump Gear Reduction Drive W/ 1 Hollow Shaft, 4.5 GPM, 5075 PSI

Udor CKC 17/36 GR Plunger Pump Gear Reduction Drive W/ 1 Hollow Shaft, 4.5 GPM, 5075 PSI

The Udor CKC 17/36 GR Plunger Pump is a heavy-duty gear reduction model designed for gas engine applications requiring maximum pressure and durability. Delivering a flow rate of 4.5 GPM and a pressure rating of 5075 PSI, this pump operates at 1450 RPM with a 2.2:1 gear reduction drive and a 1 in. hollow shaft for efficient power transfer. Built with a reinforced brass manifold, stainless steel piston guides, and heat-treated crankshaft, it ensures long-lasting reliability under demanding conditions. Ideal for pressure cleaning, sewer jetting, vehicle wash systems, hydro-excavation, and UHP fire fighting, the CKC Series combines strength, precision, and efficiency for industrial-grade performance.

Industries: Pressure Washing, Truck Wash, Car Wash, Food Processing, In Plant Cleaning Systems, Graffiti Removal, Fire Fighting, Sewer Jetting, Hydro Excavating, Reverse Osmosis, Desalination Process, De-Mucking, Misting/Fogging/Cooling, Air Conditioning Cleaning, Ground and Sod Aeration, Machine Tool Coolant, Tree Debarking, Directional Boring and Drilling, Hydrostatic Testing, Soft Wash

Features

• Gear Reduction Drive: 2.2:1 ratio for gas engine compatibility and optimal torque.
• Heavy-Duty Brass Manifold: External and internal bracing for superior strength.
• Durable Components: Bronze or aluminum connecting rods and heat-treated crankshaft for extended life.
• Enhanced Valve Design: Large diameter brass or stainless steel valve caps with increased thread depth.
• Industrial Bearings: Tapered roller bearings for smooth operation and longevity.

Specifications

• Bar: 360
• Crankshaft Stroke/Code: 13.5mm/N
• GPM: 4.5
• Inlet: 3/4 in. BSP-F
• Lubrication: 34.5 oz Udor Lube
• Max Fluid Temp: 160°F
• Max Flow: 4.5 GPM / 17.0 L/min
• Max Pressure: 5075 PSI
• Model: CKC 17/36 GR
• Outlet: 3/8 in. BSP-F
• Plunger Dia.: 20mm
• Power Requirement: 20.0 HP Gas
• Rated Pump Speed: 1450 RPM
• Seal Kit: 6061.D4
• Shaft: 1 in. Hollow Shaft
• Valve Kit: 6061.63

Downloads

Specification Sheet (PDF Download)
