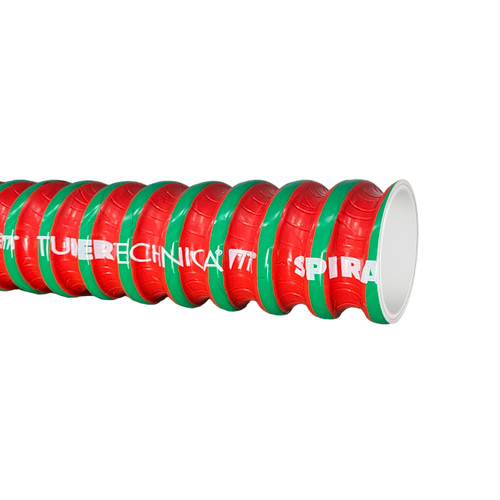

Tudertechnica Spiraltech 2 in. Butyl Extra Glide Food & Beverage Hose

The Tudertechnica SPIRALTECH® BUTYL EXTRA GLIDE hose is a premium-grade, highly flexible hose designed for a wide range of food products, particularly wine and spirits. Constructed with a white BIIR (butyl isobutylene isoprene rubber) tube that is phthalate-free and compliant with numerous food contact material standards, it meets FDA 21 CFR 177.2600, BfR XXI cat. 2, DM 21/03/1973, REGULATION 1935/2004/CE, and others. Its low permeation and low friction properties, combined with its light weight, make it ideal for truck collection applications. This hose is manufactured according to GMP (Reg. (CE) 2023/2006).

This hose features synthetic plies and thermoplastic wire helices for reinforcement. The cover is corrugated, with a green outer thermoplastic helix nested within the red, smooth rubber cover, providing resistance to abrasion, aging, ozone, and oil. It is designed to operate within a temperature range of -25°C to +120°C (-13°F to +248°F). The hose is marked with "TUDERTECHNICA SPIRALTECH® BUTYL EXTRA GLIDE". It also maintains a vacuum and can handle a working pressure of 10 bar (150 psi) and a burst pressure of 30 bar (450 psi).

Features

• Durable, reinforced cover resists abrasion, aging, ozone and oil
• Versatile temperature range: operates between -13°F to 248°F
• Handles up to 150psi
• Complies with FDA 21 CFR 177.2600, REGULATION 1935/2004/CE.

Specifications

• Size: 2 in. (51mm)
• Length: Per ft.
• Ends: None - Hose Only
• Vacuum: 13 psi (0.9 bar)
• Working pressure: 150 psi (10 bar)
• Burst pressure: 450 psi (30 bar)
• Approximate weight: 1.24 lbs/ft (1.84 kg/mt)
• Minimum Bend Radius: 3.94 in. (100mm)
• Temperature range: -13°F to 248°F (-25°C to 120°C)
• Tube: BIIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600; BfR XXI cat. 2; DM 21/03/1973 and subsequent amendments; REGULATION 1935/2004/CE; Japan Ministry of Health and Welfare Notice No.370,1959 and No.201,2006; 3-A RPSCQC for (62-02) Hose Assemblies; Arrêté du 09 novembre 1994.
• Reinforcement: synthetic plies, thermoplastic wire helices
• Cover: corrugated, green outer thermoplastic helix nested within the red, smooth rubber cover. Abrasion, ageing, ozone and oil resistant
• Marking: TUDERTECHNICA SPIRALTECH BUTYL EXTRA GLIDE
