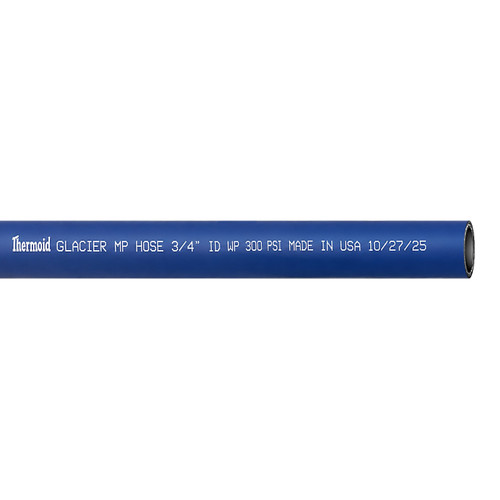

Thermoid Glacier 3/4 in. Cold Weather Fuel Dispensing Hose - Hose Only

Thermoid 3/4 in. Glacier Cold Weather Multipurpose Hose Description

Thermoid's 3/4 in. Blue Glacier Multipurpose Hose Only (22554486662) is a multipurpose hose that is built for sustaining in sub-zero temperature applications. The Glacier multipurpose hose is designed with kink-resistant flexibility and easy-reeling characteristics for optimal compatibility use after use. The synthetic rubber material of the tube is oil-resistant with the high tensile spiral polyester yarn. It delivers a pressure of 300 psi, even in extremely cold temperatures. Shop the JME site for the best selection of Thermoid multipurpose hoses today.

Features

• The ECO cover makes these hoses abrasion resistant.
• The cover is easy to reel in extremely cold temperatures.
• The 4-Spiral polyester yarn reinforcement material is more flexible and are less susceptible to premature failure if subjected to torque than braid reinforced hoses.
• The assemblies are easier to route, coil and handle.
• The Glacier multipurpose hoses are MSHA certified.

Specifications

• Size: 3/4 in.
• Color: Blue, Black
• Hose OD: 1 1/4 in.
• Reinforcement Spirals: 4
• Working Pressure: 300 PSI
• Minimum Bend Radius: 4 1/2 in.
• Weight Per Foot: 0.39 lbs./ft.
• Operating Temperature: -65°F to 180°F (-54°C to 82°C)
• Material: Epichlorohydrin Rubber (ECO)
• Reinforcement Material: 4-Spiral Polyester Yarn
• Compatible Fluids: Diesel, Biodiesel, Air, Kerosene, Gasoline, Oil, Fuel Oil
• Certification: MSHA

Downloads

Specification Sheet (PDF Download)
