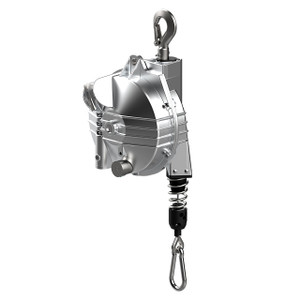

TECNA 9359 Tool Balancer, 48.5 to 55.1 lbs Capacity

Description

TECNA was the first to develop a dedicated line with ATEX certification, suitable for use in areas with a potentially explosive atmosphere composed of flammable gases or combustible materials.

TECNA AX BALANCERS, depending on the models, are compatible with most flammable fumes, gases including Propane, Ethylene, Acethylene and Hydrogen (IIC group), as well as flammable dust.

ATEX certification, beside other features, requires products to be entirely conductive, grounded and with spark-proof materials.

TECNA AX BALANCERS line is perfect for Oil&Gas applications, oil plants and refineries, chemical plants, but also tank washers, as well as situations with flour or flammable powders in suspension.

TECNA AX BALANCERS LINE performs equal to the classic TECNA BALANCERS line, simply with full compliance with ATEX strict requirement.

Features

• Ribbed and sealed monobloc construction in aluminum alloy.
• Stainless steel rope.
• Adjustable capacity by means of a worm screw.
• Auxiliary safety suspension.
• Safety device against load dropping due to the spring breakage (>3kg).
• Upper rotary suspension with safety hook.
• Locking device to block the load at any height.
• Adjustable stroke limiting device.
• Taper drum rotating on ball bearings.
• Cable guide in antifriction material.
• Rotary upper hook with ball bearing.
• Inert spring drum assembly.
• Polyamides thimble.
• Brake Device: The balancer is equipped with a friction/brake which controls the rotation speed of the drum. This option is feasible when placing a new order while it is not possible to assemble this device on balancers already installed.

Specifications

• Capacity Range: 48.5 - 55.1 lbs (22 - 25 Kg)
• Cable Type: Stainless Steel
• Stroke Length: 78.74 in. (2000 mm)
• Application Environment: Industrial (Standard)
