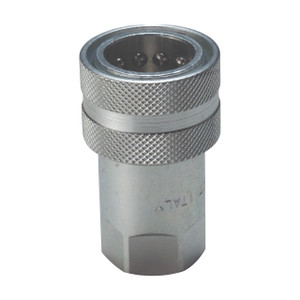

Stucchi IRB 3/4 in. Female ISO A Interchange Coupler 3/4 in. NPT, 39.22 GPM

Description

The IRB Series Quick Couplings are interchangeable to ISO B standard (ISO 7241-B). The IRB is offered in three different high quality materials to meet different application challenges—IRB carbon steel with Nitrile seals, IRBO brass with Viton seals, and IRBX 316 stainless steel with Viton seals. The entire series features compact design, AISI 302 stainless steel springs, and PTFE anti-extrusion rings.

NOTE: Male Coupling is sold separately.

Features

• Interchanges with ISO B, Parker 60, Aeroquip FD45, Faster HNV
• Used anywhere a compact size and high quality material are required
• Used in Industrial process applications, agricultural equipment, oil & gas industry

Specifications

• Brand: Stucchi
• Series: IRB
• TYPE: Female
• Port (A): 3/4 in.
• Body size: 3/4 in.
• Port Option: NPT
• Product Type: ISO A Interchange Coupler
• Dimensions: 3.55 × 1.97 in
• Spillage (ml) : 9.4
• Valving style: Poppet
• Interchange: ISO 7241 B
• Sealing: Nitrile NBR
• Connection system: Pull back the sleeve and push
• Disconnection system: Pull back the sleeve
• Material: Carbon steel
• Treatment: Cr3
• Locking mechanism: Locking ball
• Disconnectable under pressure: No
• Thread: Female Thread Npt (Ansi B.1.20.1)
• Connectable under residual pressure: No
• Temperature: -20 / +100 °C; -4 / +212 °F
• Applications: Oil & Gas, Industry, Chemical & Food Industry
• ISO DN (mm): 19
• Max. Flow Rate (GPM): 39.22
• Max. Operating pressure - coupled (PSI): 3335
• Operating pressure - uncoupled (PSI): 3335
• Burst pressure - coupled (PSI): 14500
• Burst pressure - uncoupled (PSI): 14500
• Connect force (lbf): 28.125
• Disconnect force (lbf): 9
• Spillage (ml): 9.4
• Length (in): 3.55
• Max. diameter (in): 1.97
• Weight (lb): 1.26
