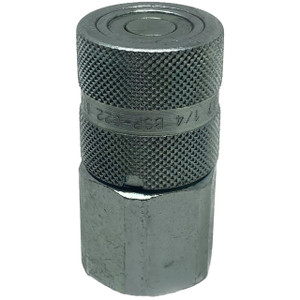

Stucchi A Premier 5/8 in. Female ISO 16028 Interchange Coupling 3/4 in. NPT, 39.22 GPM

Description

The A Premier Series Flat Face ISO 16028 Interchange Couplings offer higher pressure ratings, superior flow characteristics, and lower pressure drops compared to FIRG Series or competitors products. Specifically designed for applications needing no-leak performance and the ideal solution for limiting contamination in hydraulic circuits, the non-spill design avoids fluid loss during connection and disconnection. The A Premier is also available in an international version, with British BSP or German DIN port options.

NOTE: Male Coupling is sold separately.

Features

• Interchanges with ISO 16028
• Lock system stops unwanted disconnect
• Modular structure for multiple port option
• Hardened steel, 12 to 20 balls reduce brinelling
• Specifically designed for applications needing no-leak performance
• Ideal for limiting contamination in hydraulic circuit
• Applications involving high pressure impulses in agriculture equipment, mobile construction equipment, oil & gas exploration, and general industrial plants

Specifications

• Brand: Stucchi
• Series: A Premier
• TYPE: Female
• Port (A): 3/4 in.
• Body size: 5/8 in.
• Port Option: NPT
• Product Type: ISO 16028 Interchange Coupling
• Dimensions: 3.31 × 1.76 in
• Spillage (ml) : 0.026
• Valving style: Flat face
• Interchange: ISO 16028
• Sealing: Nitrile NBR
• Connection system: Push
• Disconnection system: Pull back the sleeve
• Material: Carbon steel
• Treatment: Cr3
• Locking mechanism: Locking ball + Safety lock
• Disconnectable under pressure: No
• Thread: Female Thread Npt (Ansi B.1.20.1)
• Connectable under residual pressure: No
• Temperature: -20 / +100 °C; -4 / +212 °F
• Applications: Earth moving, Agriculture, Vehicles, Oil & Gas, Industry, Hydraulic Tools
• ISO DN (mm): 16
• Max. Flow Rate (GPM): 39.22
• Max. Operating pressure - coupled (PSI): 4785
• Operating pressure - uncoupled (PSI): 4785
• Burst pressure - coupled (PSI): 14500
• Burst pressure - uncoupled (PSI): 14500
• Connect force (lbf): 42.75
• Disconnect force (lbf): 12.375
• Spillage (ml): 0.02
• Length (in): 3.31
• Max. diameter (in): 1.65
• Weight (lb): 1.39
