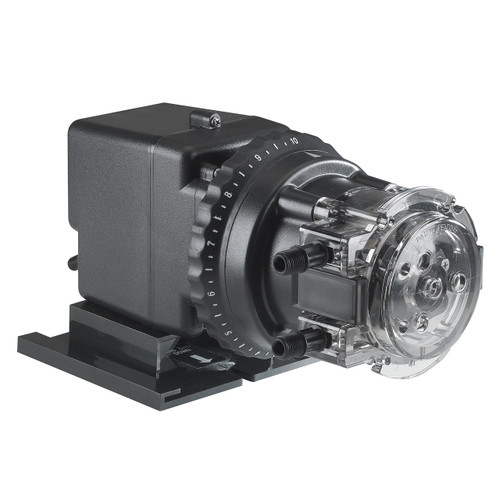

Stenner 85MJH7A1STAA Chemical Metering Peristaltic Pump, 2 - 40 GPD

Stenner Pumps's Classic Series Single Adjustable Head pumps, which are designed as the top-notch and industry leadering in single head adjustable pumps. With various engineered capabilities, such as a 20:1 turndown ratio and 2.5% increments, the Stenner pumps are key to getting your task complete. The single head adjustable pump is an ideal choice for treating problem water, it can inject solutions for pH control or to oxidize iron, hydrogen sulfide or manganese for removal by filtration. The best applications for these pumps include water conditioning, industrial process, water and wastewater, and cooling towers. Shop the JME site for the best selection of the Classic Series Single Adjustable Heads for pumps from Stenner Pumps and many others today.

Features

• Pump heads and tubes are interchangeable, allowing for one model to be converted to another model without having to purchase new pumps.
• Can replace tubes without tools thanks to the QuickPro® pump head, patented by Stenner.
• There are three (3) detachable components of the pump: the motor, the feed rate control and the pump head. All three can be separated without tools.

Specifications

• Flow Rate: 2 - 40 GPD (Gal./day)
• Pressure: 100 PSI
• Maximum Operating Temperature: 125°F
• Maximum Shaft RPM: 44 RPM
• Pump Tube Material: Santoprene (FDA Approved)
• Suction/Discharge Line Material: Polyethylene (FDA Approved)
• Tube & Injection Fitting Material: Polypropylene
• Connecting Nut Material: Polypropylene
• Adapter Material: 3/8 in. Polypropylene
• Suction Line Strainer & Cap Material: Polypropylene
• Voltage: 120V 60Hz
• Dimensions: 6 in. x 5.3 in. x 10.6 in.
• Shipping Dimensions: 13 in. x 8 in. x 10 in.
• Shipping Weight: 9 lbs.

Downloads

Installation Instruction (PDF Download)

Specifications Sheet (PDF Download)

Chemical Resistance Guide (PDF Download)
