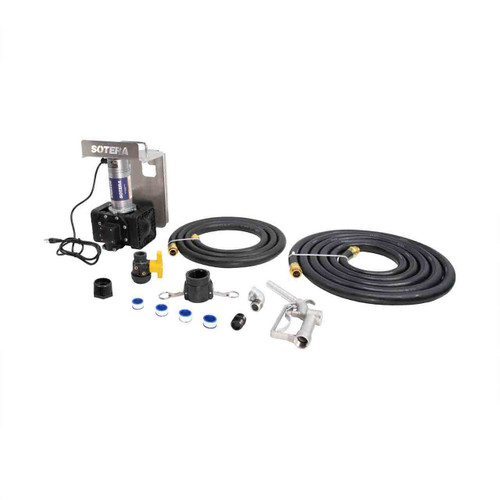

Sotera FR491BMH4-MF0 115V AC IBC Tote Bracket Pump Package - 13 GPM

Description

The Sotera FR491BMH4-MF0 model is a 115V AC transfer system designed for bulk transfer of wide range of chemicals and fluids, including some aggressive chemicals. The FR491BMH0-MF0 is manufactured with an IBC tote bracket and is designed to hang from IBC tote cages. It comes complete with a battery cable, suction hose, discharge hose, nozzle, and other fittings. The Sotera 400 Series is widely known for its versatility and dependability in a broad range of ag-chemical and industrial applications. These reliable pumps are built to last, with robust glass-filled polypropylene construction, perfect for withstanding daily use and tough weather conditions. Utilizing electric double diaphragm technology, the 400 Series efficiently transfers fluids ranging from 0 to 3700 cP and can pass particle sizes up to 1/10 in.

Features

• Consistent & Reliable Performance - engineered with double diaphragms, the Sotera 400 series delivers reliable performance by maintaining constant output pressure regardless of load
• Durable Design - pump can run dry without causing any internal damage, giving you peace of mind with your investment
• Long Life - thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
• Convenient Configurations - conveniently available in six core configurations for your application including the portable Chemtraveller, recirculating Mix-N-Go, mobile Pump-N-Go, sturdy IBC tote bracket, steel drum mount, and plastic straight flange
• 5-Year Warranty - we stand behind our product with full 5-Year Warranty to protect your purchase and your business

Specifications

• Flow Rate @ 1.5 CP: 13 GPM / 49 LPM
• Flow Rate @ 350 CP: 12 GPM / 45 LPM
• Maximum Fluid Viscosity: Up to 3700 cP
• Maximum Particle Size: Up to 1/10 in. / 2.54 mm
• Minimum Suction Lift: 9 ft / 2.7 m (Water)
• Maximum Discharge Head: 34 ft / 10.4 m
• Maximum Discharge Pressure: 15 PSI / 1.03 BAR
• Duty Cycle: 30 minutes on / 30 minutes off
• Thermally Protected Motor: Yes
• Motor Horsepower: 1/4 HP
• Maximum Sound Level: 76.6 dB
• Inlet Size & Thread: 1 in. NPT
• Outlet Size & Thread: 1 in. NPT
• Min / Max Operating Temperature: -10°F (-23°C) / 130°F (54°C)

Includes

• 1 in. x 20 ft. Hose with Static Ground Wire
• 1 in. x 12 ft. Hose with Static Ground Wire
• 1 in. Cast Aluminum Manual Nozzle
• 1 in. Short Poly Pipe Nipple
• 1 in. NPT Street Elbow
• 2 in. Female Coupler
• 2" to 1" Poly Reducer Bushing
• 1 in. Shutoff Ball Valve
• (4) PTFE Tape Rolls

Chemical Compatibility

• Automotive Fluids
• Diesel Fuel
• Gear Oil
• Hydraulic Fluid
• Lube Oil
• Mineral Spirits
• Refined Petroleum Products
• Suspensions
• Waste Oil

Chemical Compatibility should be considered as a guide only due to the many variables which may affect the compatibility of materials.
