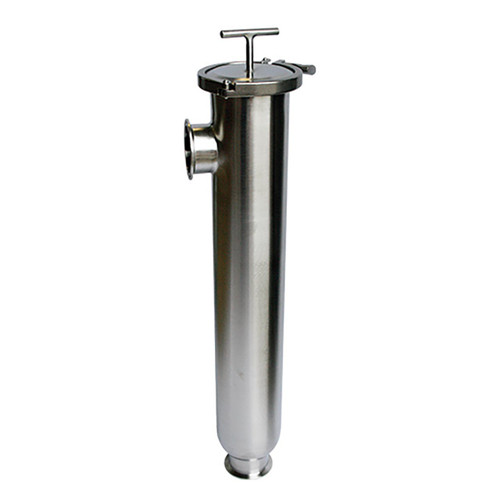

Sani-Matic 2 1/2 in. 316L SS Short Angle Line Strainer W/ End Inlet

Description

In-Line Particulate Removal for Sanitary Process Systems

Sani-Matic's 316L stainless steel angle-line strainer isolates particulates and contaminant debris from process streams without substantial pressure drops. This is a critical requirement in sanitary food, beverage, and pharmaceutical lines, as well as data center liquid cooling loops where debris can block micro-channel cold plates and cause localized thermal failures. The short body with a tri-clamp end-inlet connection handles up to 165 gpm at a clean pressure drop of approximately 2.9 psi. The 4" body houses a 3" × 15" perforated element with ¼" (0.25") hole size and 58% open area, providing high flow capacity with a low resistance to clean fluid. All wetted surfaces are 316L SS with a 32 µin Ra sanitary finish on welds and internal components. The standard seal kit pairs an EPDM gasket with a Teflon encapsulated silicone O-ring. Maximum rated pressure is 125 psi at 250°F using the standard tri-clamp (13MHHM).

The angle-line design allows the strainer element to be pulled for cleaning or replacement without removing the body from the process line, minimizing downtime. Flow direction is end-inlet (standard flow), and the same body can be reconfigured to side-inlet (reverse flow) using a conversion kit.

Key specifications:

• Material: 316L stainless steel body, internals, and element; 32 µin Ra mechanical polish finish
• Connection: 2.5" tri-clamp (standard), short body, 20¾" inlet-to-outlet
• Element: 3" × 15" perforated, ¼" hole size, 58% open area
• Flow direction: End-inlet (standard flow); convertible to side-inlet via conversion kit
• Max flow: 165 gpm; clean pressure drop ~2.9 psi at max flow (70°F water)
• Max pressure: 125 psi @ 250°F (standard tri-clamp); 200 psi (high-pressure tri-clamp)
• Seal kit: EPDM gasket / Teflon encapsulated silicone O-ring (standard)
• Max allowable pressure drop across element: 20 psi (perforated); 50 psi (wedgewire)
• 3-A authorized with perforated element (without mesh overlay)

Specifications

• Brand: Sanimatic
• Strainer Model: Angle Line
• Body Length: Short
• Connection Size: 2 1/2 in.
• Connection Type: TC
• Finish/Polish: 32 µin Ra
• Element Type/Size: 1/4 in. Perforated
• Flow Direction: End Inlet
• Seal Kit: EPDM/Teflon Encapsulated Silicone
• Body Size: 4 in.
