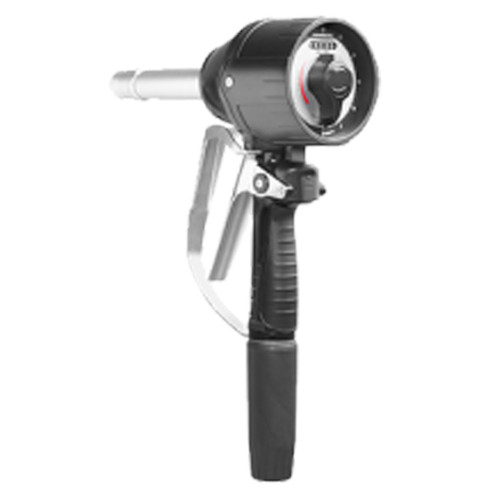

Samson MC8P Mechanical Pre-Set Valve w/ Rigid Tip, 0-60 Gallons, 1/2 in. NPT

Samson's MC8P Series Mechanical Preset Dispense Valve (365817) allows for filling crankcases, engines and other reservoirs with ease. It can fill up to 60 gallons in one go. This meter valve also automatically shuts off when the time is right. Shop the JME site for the best selection of Samson MC8P Series products today.

Features

• Extensively and rigorously field tested for reliable performance.
• No calibration required.
• One piece polycarbonate based integral register housing and single molded pointer knob guarantee maximum integrity of the meter against drops and impacts and provide superb protection against humidity.
• Simple and easy to read dial includes 5-digit totalizer.
• Very tough metal construction, the meter is ideal for intensive use and outdoor applications.

Specifications

• Weight: 3 lbs.
• Maximum Flow Rate: 8 GPM
• Maximum Pressure: 1,450 PSI
• Inlet Size: 1/2 in.
• Outlet Size: 1/2 in.
• Thread Type: Female NPT
• Accuracy: +/-0.65%
• Wetted Materials: Aluminium, Zinc alloy, Stainless Steel, NBR, Brass, Steel, TPU, Polyamide
• Compatible Fluids: gear oil, ATF, hydraulic fluid, synthetic/mineral based oils

Downloads

Specification Sheet (PDF Download)

Product Literature (PDF Download)
