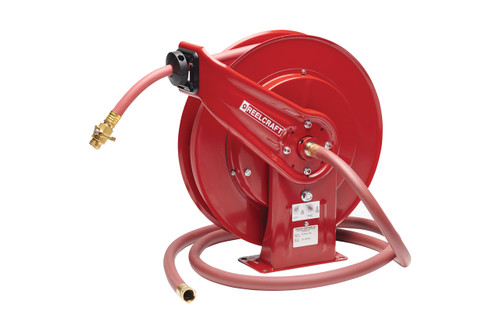

Reelcraft GC7535 OLP 5/8 in. x 35 ft. Premium Duty Garden Hose Reel - Reel & Hose

Reelcraft's garden hose reels are designed to be mounted centrally and used for watering and washdown. They offer longer lengths of larger I.D. hose, are spring-driven, and come equipped with garden hose end fittings (designated by GH). This model includes an outlet hose with brass on/off valve, bumper, and inlet hose, providing a reel solution out of the box.

Features

• Long spring life - Spring is made from high-quality spring steel and conditioned to remove imperfections.
• Structural strength - Reel components are made from industrial-grade steel and ribs are added to give added stability.
• Corrosion-resistant - Parts are individually powder-coated for high quality, uniform paint adhesion. The result is a brilliant abrasion/corrosion-resistant finish that keeps these reels looking new through years of use.

Fluid Path Materials

• Internal Fluid Path: Steel
• Swivel Assembly: Steel
• Swivel Seal: Aflas

Specifications

• Weight: 55 lbs
• Series: 7000
• Hose ID: 5/8 in.
• Hose OD: 0.810 in.
• Hose Length: 35 ft.
• Pressure: 200 psi
• Hose End: 3/4 in. GH(M)
• Inlet: 3/4 in. GH(F)
• Reel Outlet: 3/4 in. NPT(F)
• Hose Included: Yes
• Max Temperature: 150 °F
• UPC: 699567008750

Downloads

Product Manual
