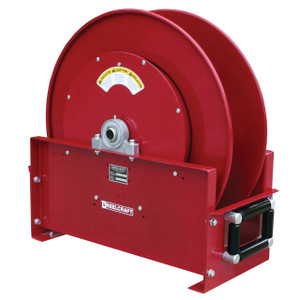

Reelcraft FE9450 OLPBW Vehicle Mount Fuel Hose Reel, Spring Rewind - 1 in. x 50 ft. - Reel & Hose

Description

Reelcraft’s spring retractable fuel delivery hose reels, equipped with FKM seals, incorporate metal forms to ensure the greatest possible strength and are ideal for mobile and permanent-mount applications. These rugged, corrosion-resistant reels are suitable for a wide variety of fuel applications including E85. Series FE9000 reels are supplied with our ball-bearing style swivel. Contact Reelcraft for top wind and side wind hose guide models. NOTE: Not recommended for jet fuel.

Features

• Substantial base frame: The full-width frame has the greatest amount of mounting area and overall strength of reels within its class.
• Full flow stress-free swivel design: The full flow swivel combines the highest grade seal design and materials with bearing areas to ensure maximum service life.
• Quality finish and corrosion resistance: Individually powder-coated components offer the maximum protection from premature corrosion.
• The reel is shipped in the bottom wind position with a right-hand inlet.
• Made in USA

Specifications

• Brand: ReelCraft
• Series: 9000
• Part Number: FE9450 OLPBW
• Hose I.D.: 1 in.
• Hose O.D.: 1 1/2 in.
• Hose Length: 50 ft.
• Pressure: 50 PSI
• Hose End: 1 in. NPT(M)
• Inlet: 1 in. NPT(F)
• Reel Outlet: 1 in. NPT(F)
• Hose Included: Yes
• Max Temperature: 150 °F
• UPC: 699567003427
• Guide Roller Position: Bottom Wind
• Carton Dimensions: 28 in. x 13.5 in. x 29 in.
• Base Material: Steel
• Internal Fluid Path: Steel
• Swivel Assembly: Steel
• Swivel Seal: FKM
• Compatible Fluids: Diesel & Gas

Downloads

Product Manual (PDF Download)

Specification Sheet (PDF Download)
