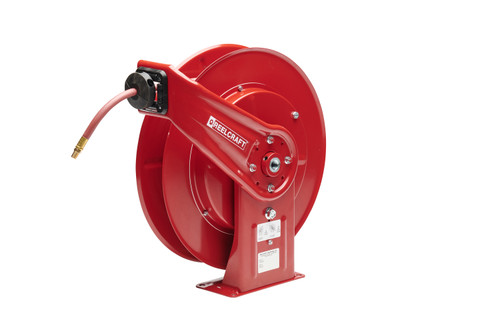

Reelcraft 7670 OLPBW 3/8 in. x 70 ft. Premium Duty Hose Reel - Reel & Hose

The Reelcraft Series 7000 spring retractable hose reel is very robust and ideal for the most demanding applications. The base and guide arm are constructed from high-grade steel and engineered with structural forms and gussets to yield the greatest amount of strength.

Features

• Individually powder-coated steel components offer maximum protection from premature corrosion
• Inlet hose is plumbed into the base to eliminate the risk of stress on the swivel
• Low-pressure 3/8 in. x 70 ft. PVC hose included; hose is for air or water service only
• Guide arm adjusts to seven positions
• Base plate, upright, and guide arm are constructed from 11 gauge steel; the spool is 16 gauge steel
• Additional Series 7000 reel models include stainless steel, controlled return, enclosed, twin hydraulic, fuel delivery, pressure wash, and gas/cable welding
• Made in the USA

Fluid Path Materials

• Internal Fluid Path: Steel
• Swivel Assembly: Steel
• Swivel Seal: Nitrile Rubber

Specifications

• Weight: 47 lbs
• Series: 7000
• Hose ID: 3/8 in.
• Hose OD: 0.600 in.
• Hose Length: 70 ft.
• Pressure: 300 psi
• Hose End: 1/4 in. NPT(M)
• Inlet: 1/2 in. NPT(F)
• Reel Outlet: 1/2 in. NPT(F)
• Hose Included: Yes
• Max Temperature: 150 °F
• UPC: 699567000211

Downloads

Product Manual
