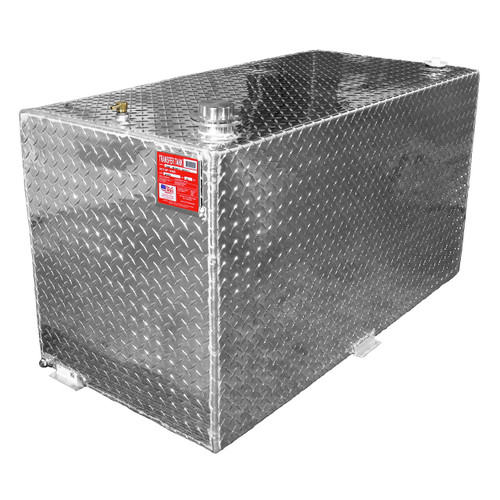

RDS Manufacturing 113 Gallon Aluminum Rectangular DOT Certified Transfer Tank

RDS Manufacturing 113 Gallon Aluminum Rectangular DOT Certified Transfer Tank

The RDS Manufacturing 113 Gallon Aluminum Rectangular Transfer Fuel Tank is a high-performance, DOT-approved solution for transporting diesel, gasoline, or aviation fuel. Proudly made in the USA, this tank is constructed from heavy-duty, rust-resistant 0.125-inch aluminum and features fully welded seams for superior durability. Each tank undergoes 100% pressure testing to ensure leak-free performance. Designed with built-in baffles to minimize fuel sloshing and a vehicle rollover safety valve, this tank offers both safety and reliability. Ideal for commercial and industrial use, it includes a 2-inch female pipe thread coupling for a manual or 12V transfer pump (sold separately) and a 3/8-inch NPTF(F) drain plug for easy maintenance.

Note: Transfer tanks have a drain plug and can be used to gravity feed diesel.

Attention: Adhere to these guidelines before installation. Failure to follow these guidelines will result in voiding your warranty.

• The fill cap location and pump location cannot be swapped.
• Do not install risers between the fuel tank fitting and the pump.
• Do not use extension pipes to raise the height of the transfer pump.
• Do not install a pump over 30 lbs. to a standard duty tank. For pumps over 30 lbs., a Severe Series tank must be used. The 30 lb. limit includes pump and any other accessories such as filter kit, meters, etc.

Features

• Heavy-Duty Aluminum Construction: Built from 0.125-inch thick aluminum that resists rust and corrosion for long-lasting performance.
• DOT Approved for Fuel Transport: Certified for safe transport of diesel, gasoline, or aviation fuel.
• Fully Welded and Pressure Tested: Every tank is 100% pressure tested and features fully welded seams to prevent leaks.
• Built-In Safety and Stability: Includes internal baffles to reduce fuel movement and a rollover safety valve for added protection.
• Pump-Ready Design: Equipped with a 2-inch female pipe thread coupling compatible with manual or 12V transfer pumps (sold separately).

Specifications

• Capacity: 113 Gallon
• Dimensions: 48 in. L x 23 3/4 in. W x 26 in. H
• Finish: Diamond Plated
• Material: Aluminum
• Shape: Rectangle
• Weight: 115 lbs. (Assembled)

Important Notes:

• Mounting tabs extend out 1 in. - adds 2 in. to total length and 1 in. to total width
• Add 2 1/2 in. for fill cap height
• Always measure the truck's bed for clearance at corners, wheel wells, etc.

Downloads

Installation Instructions (PDF Download)

RDS DOT Permit (PDF Download)
