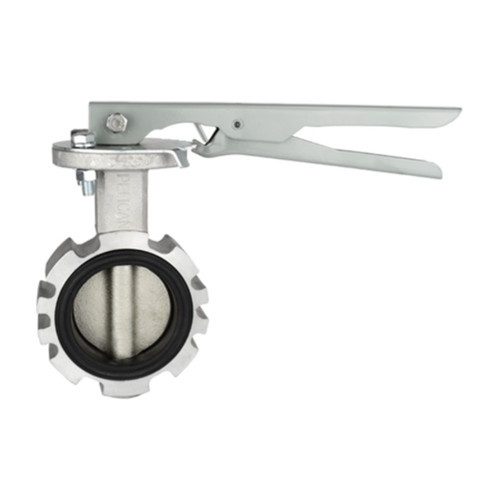

Pelican V-200-A-AL-DI-BN-03-HKPC-10 3 in. Aluminum Butterfly Valve, SS Stem & Iron Disc, 10 Position Steel Handle, Black Nitrile Seat

Pelican V-200-A-AL-DI-BN-03-HKPC-10 3 in. Aluminum Butterfly Valve, SS Stem & Iron Disc, 10 Position Steel Handle, Black Nitrile Seat

The Pelican 200 Series 3 in. Butterfly Valve is designed for reliable flow control in abrasive and demanding material handling applications. This valve features a lightweight aluminum one piece body paired with a ductile iron disc and stainless steel stem for dependable operation and corrosion resistance. The black Nitrile Rubber seat provides resistance to oil, fuel, and a variety of chemicals, making it suitable for transfer systems and industrial process applications. Its low torque seat design helps reduce operating effort, while the universal top plate accepts most standard actuators without requiring an adapter flange. The included powder coated stamped steel handle kit features a 10 position notch plate for controlled valve positioning and secure operation.

Features

• Lightweight Aluminum Body: Reduces overall system weight while providing durability for industrial service.
• Stainless Steel Stem: Delivers dependable performance and resistance to corrosion in demanding environments.
• Ductile Iron Disc: Provides strength and reliable shutoff characteristics for flow control applications.
• Black Nitrile Rubber Seat: Resists oil, fuel, and a range of chemicals for extended service life.
• Low Torque Seat Design: Minimizes operating effort and promotes smooth valve actuation.
• Universal Top Plate: Accepts most standard actuators, simplifying installation and future upgrades.
• 10 Position Handle Kit: Allows precise valve positioning and secure operation.
• One Piece Body Construction: Offers a cost effective solution for applications where periodic valve replacement may be required.

Specifications

• Body: Aluminum
• Body Flange OD: 5.275 in.
• Bolt Hole Circle: 4.875 in.
• Disc: Ductile Iron
• Disc Height: 3.063 in.
• Handle Hardware: Includes Mounting Hardware
• Handle Notch Plate: 10 Position
• Handle Type: Stamped Steel, Powder Coated
• Seat: Black Nitrile Rubber
• Series: 200
• Size: 3 in.
• Stem: Stainless Steel
• Stem Diameter: 0.375 in.
• Top Plate Bolt Circle: 3.25 in.
• Top Plate Bolt Hole Diameter: 0.437 in.
• Top Plate Diameter: 4 in.
• Top Plate Hole Count: 4
• Top Plate ISO Bolt Circle: 2.76 in.
• Top Plate ISO Bolt Hole Dia: 0.375 in.
