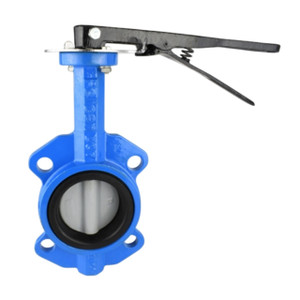

Pelican V-100-A-CI-DI-BE-06 6 in. Cast Iron Butterfly Valve w/ SS Stem & Nylon Coated Iron Disc, 10 Position Handle, EPDM Seat

Pelican V-100-A-CI-DI-BE-06 6 in. Cast Iron Butterfly Valve w/ SS Stem & Nylon Coated Iron Disc, 10 Position Handle, EPDM Seat

The Pelican V-100-A-CI-DI-BE-06 Series 100 Butterfly Valve Assembly is designed for reliable flow control in industrial, agricultural, water transfer, and fluid handling applications. This 6 in. valve features a cast iron body, nylon coated ductile iron disc, stainless steel stem, and black EPDM seat for dependable sealing performance and corrosion resistance. The powder coated stamped steel 10 position handle allows precise manual control, while the ANSI B16.5 flange drilling pattern supports compatibility with standard piping systems. Each valve is pressure tested and supplied as a complete assembly, providing a durable solution for demanding operating environments with working pressures up to 200 PSI.

Features

• Durable Cast Iron Body: Provides long service life and dependable performance in demanding industrial environments.
• Nylon Coated Disc: Helps resist corrosion and wear while maintaining smooth valve operation.
• Stainless Steel Stem: Offers strength and durability for consistent operation over time.
• EPDM Seat Design: Delivers reliable sealing performance for a wide range of fluid handling applications.
• 10 Position Handle: Allows accurate flow adjustment and secure valve positioning.
• Pressure Tested Assembly: Factory tested to verify performance and operational integrity.
• ANSI B16.5 Flange Compatibility: Simplifies installation into standard piping systems.
• Actuator Ready Design: Available for use with pneumatic actuator configurations when required.

Specifications

• Body: Cast Iron
• Bolt Hole Circle: 9.5 in.
• Disc: Nylon Coated Ductile Iron
• Flange Standard: ANSI B16.5
• Handle: Powder Coated Stamped Steel, 10 Position
• Handle Length: 10.338 in.
• Part Number: V-100-A-CI-DI-BE-06
• Pressure Rating: 200 PSI
• Pressure Test: 150 lbs.
• Seat: Black EPDM
• Series: 100
• Size: 6 in.
• Stem: Stainless Steel SS416
