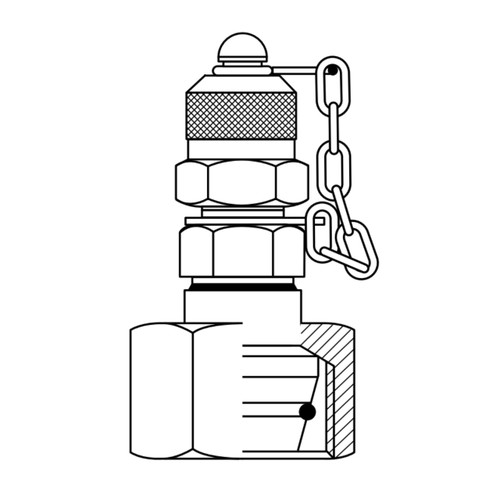

PCI H900-59 M52 x 2 Low Pressure Steel Test Connector For Compression Ring Fittings

PCI H900-59 M52 x 2 Low Pressure Steel Test Connector For Compression Ring Fittings

SKU:
PCIH90059
Manufacturer:
Pressure Components Inc.
Size:
M52 x 2
Tube Size:
42
Hex:
2.36
Material:
Steel
Rated Pressure:
4560 PSI
Interchangeability:
Stauff, Parker
Weight:
0.50 LBS
$43.36
Adding to cart… The item has been added

PCI H900-59 M52 x 2 Low Pressure Steel Test Connector For Compression Ring Fittings

The Low Pressure H900 Series Diagnostic Couplings are test connectors designed for compression ring fittings, offering reliable performance in low-pressure applications up to 4560 PSI. With a self-locking metal cap and leak-proof design, these steel couplings are perfect for monitoring, venting, fluid sampling, and remote testing. They are also compatible with Stauff and Parker systems.

Features

  • Leak-Proof Connection: Ensures secure sealing, preventing fluid leakage during testing or sampling
  • Self-Locking Metal Cap: Protects against contamination and accidental spillage by maintaining a tight closure
  • Able To Test Systems at Working Pressure: Handles pressures up to 4560 PSI, making it ideal for low-pressure diagnostic operations

Specifications

  • Size: M52 x 2
  • Tube Size: 42
  • Hex: 2.36
  • Materials: Steel
  • Temp. Rating: -22°F to 212°F
  • Rated Pressure: 4560 PSI
  • Interchangeable With: Stauff, Parker
