OPW 2 in. Aluminum Kamvalok Adapter w/ Viton Seals

SKU:
OPW1612ANAL20
Manufacturer:
Size:
2 in.
Material:
Aluminum
Seal-Material:
Viton
Type:
Female NPT
Weight:
2.50 LBS
$148.80
OPW 2 in. Aluminum Kamvalok Adapter w/ Viton Seals

OPW 2 in. Aluminum Kamvalok Adapter w/ Viton Seals

SKU:
OPW1612ANAL20
Manufacturer:
Size:
2 in.
Material:
Aluminum
Seal-Material:
Viton
Type:
Female NPT
Weight:
2.50 LBS
$148.80

The 1600AN series adapter is specifically designed to mate with Kamvalok Couplings to help prevent liquid spillage during the connection / disconnection process. The adapter contains a spring-loaded poppet to assure fast closing and tight seals.

Features

  • Single Piece Design – Eliminates a possible leak path.
  • Spill Prevention – Poppet-actuated design can only be opened with a Kamvalok® coupling; designed to provide a tight seal when closed.
  • Reliability of Operation – The simple spring-loaded poppet design and heavy-duty construction provide for reliable, long-life operation.
  • Optimum Flow Rate – Even flow and low pressure drop are achieved by a built-in deflector that reduces turbulence.

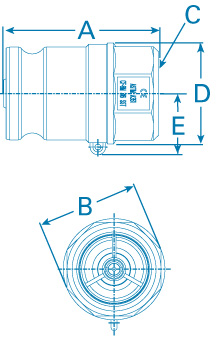

Dimensions


  1 1/2" 2" 3"
A 4-3/4" 4-15/16" 6-17/32"
B 2-1/2" 3-1/4" 4-1/2"
C 1-1/2" 2" 3"
D 2-21/32" 3-1/4" 4-7/8"
