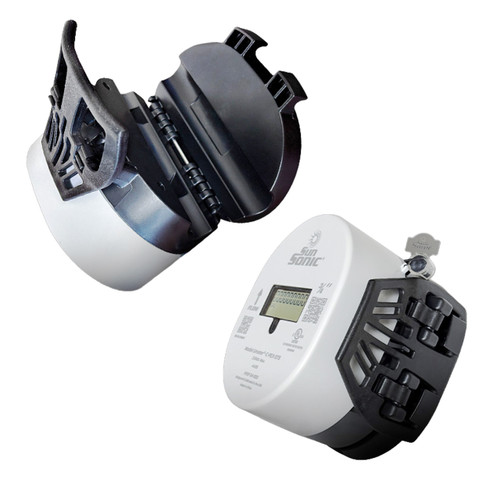

Norgas UMETER-C-PEX-1 PEX Pipe Clamp Ultrasonic Water Meter 1 in.

Description

Norgas 1 in. Pipe Clamp Ultrasonic Water Meter

The Umeter ultrasonic water meter detects a wide range of flow rates with unparalleled accuracy, thanks to advanced ultrasonic technology and its nonmoving components. It offers a convenient solution to seamlessly attach to PEX , Copper, or CPVC piping systems with its patented clamp. The Umeter Clamp provides water flow data consistently throughout its operational lifespan, making it an ideal choice for both new installations and retrofitting existing setups. The Umeter product line is designed for installation in air-handling spaces (Plenum) and meets the standards outlined in its UL listings.

Features

• Ultrasonic technology is utilized to quickly supply flow data with ultra-stable accuracy.
• An easy-to-use patented clamp expedites installation time and lowers the cost.
• Reduced installation costs generate more installations per year.

Specifications

• Umeter Series Size: 1 in.
• Flow Range: 0.15 - 55 GPM
• Typical Pressure Loss: 2 PSI Max
• Meter Flow Orientation: Any orientation, angle, and/or direction
• Pipe Type: PEX Pipe
• Storage Temperature: -20° - 140°F (-28.9° - 60°C)
• Measured-fluid Temperature Range: 36° - 140°F (2.2° - 60°C)
• Battery: Replaceable 10-year battery life

Downloads

Product Manual (PDF Download)

Product Literature (PDF Download)
