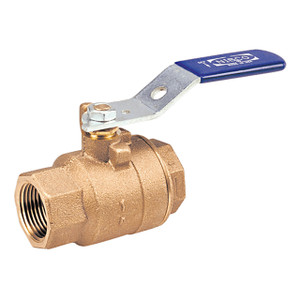

NIBCO Two-Piece 3/8 in. Bronze Ball Valve - Full Port

The bronze ball two-piece valve from NIBCO® delivers air-tight shutoff when the valve reaches 600 PSI. The reinforced PTFE seat ring and hard chrome brass plated balls allow for high chemical resistance and compatibility within the valve. The NIBCO two-piece valve's recommended applications include compressed air, hot & cold domestic water, HVAC, low pressure streams, and many other high-pressure applications. Shop JME's site for the widest array of NIBCO® two-piece bronze ball valves in the industry.

Features

• 600 PSI valve pressure rating and 41.4 bar non-shock cold working pressure.
• 400°F Maximum temperature.
• Full port available on valve
• Comes with chrome plated brass ball and silicone bronze stem.
• Has a blowout-proof stem to prevent blowouts.
• A standard lever handle provided with valve.
• Threaded end connections come standard
• Dezincification resistant
• Prohibited from use in U.S. drinking water applications after 1/3/2014.
• MSS SP-110 Compliant.

Specifications

• Material: bronze.
• Two-piece body.
• Full port 3/8 in.
• Bronze trim.
• Blowout-proof stem.
• 600 PSI & 41.4 bar non-shock cold working pressure.
• 150 PSI & 10.3 bar saturated steam.
