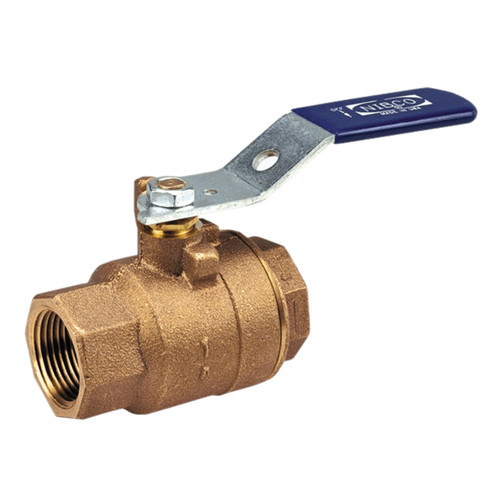

NIBCO Two-Piece 2 1/2 in. Bronze Ball Valve - Full Port

NIBCO®'s top of the line bronze ball valve with threaded end connections ensures a bubble-tight shutoff at 600 PSI. Important features such as hard chrome brass plated balls and reinforced PTFE seat rings inside the valves results in high chemical resistance, allowing for the valve to be used in many high-pressure applications. It is ideal for hot and cold water, compressed air, condenser and chilled water, vacuum services, and numerous gas applications. Additionally, the NIBCO bronze ball valve may be used in isolation and throttling applications (half open to fully open only).

Features

• 600 PSI valve pressure rating / 41.4 bar non-shock cold working pressure
• 400°F Maximum temperature
• Included with conventional port and a blowout-proof stem
• Includes chrome plated brass balls and silicon bronze stem
• Has a standard lever handle
• Dezincification resistant
• Prohibited from use in U.S. drinking water applications after 1/3/2014.
• MSS SP-110 Compliant.

Specifications

• Two-piece body
• Standard port 2 1/2 in.
• Bronze trim
• Blowout-proof stem
• Material: Reinforced PTFE and Bronze

Downloads

Specification Sheet (PDF Download)

Product Literature (PDF Download)
