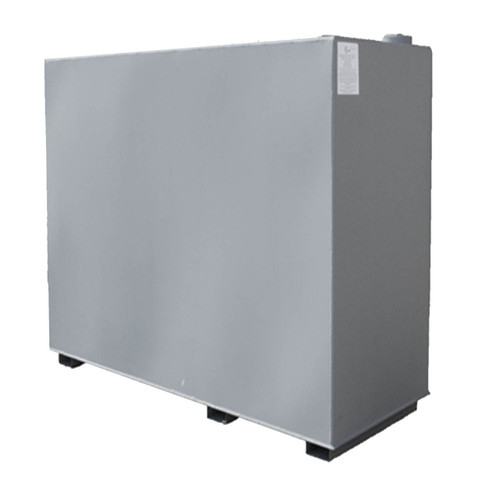

Rectangular 1000 gallon single wall slim storage lube oil tanks to fit through doorways, into pits and service bays, and along aisle ways, slim design saves space. Rectangular lube tanks are built, tested, and labeled per UL-142. Overall 96"L x 41"W x 60"H. H.R. Carbon Steel construction. Tanks come standard with one coat of gray primer select choice of White, Battleship Gray or Black enamel paint. Call a JME Specialist at 800-333-3331 for a freight estimate and quote on custom colors or available options: Emergency vents, overspill containment, gauges, hose reel brackets, pneumatic pump equipment packages, lockable fill caps, and dispensing meters
Note: This items ships on a flat bed truck, no pallet. Not recommended for LTL, custom pallets will need be ordered. Call for a shipping quotation
Specifications
- Single Wall
- 1000 Gallon
- 12 Gauge w/10 gauge top
- H.R. carbon steel
- 96 in. L x 41 in. W x 60 in. H
- Certified UL-142 Label
- 1 Year Warranty
Bung Connections
- Qty 5, 2 inch female NPT
- Qty 1, 6 inch female NPT (Emergency Vent Opening)
- Qty 1, 3/4 inch female NPT (Drain)
Downloads
Dimensional Drawing (PDF Download)
