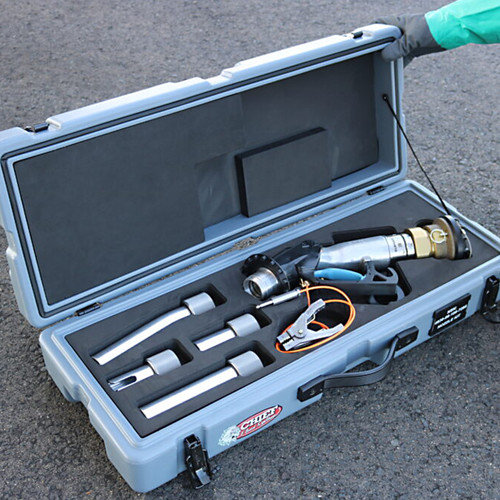

MRN-4-1 Gravity Refueling Nozzle Kit

The MRN-4-1 Gravity refueling kit is designed to meet the harsh needs of refueling and military refueling needs. The nozzle kit is a compact commercial off the shelf, single refueling nozzle with four interchangeable spouts with a genderless hose connection point in a compact carry case with fuel resistant foam inserts.

Originally designed for helicopter refueling the nozzle kit can also be used for land based fuel supply trucks. The nozzle assembly can convey a wide variety of fuels. The spout and coupling are compliant and contain no reactive materials for use with Petroleum, Oil, and Lubricants ( POL), Petroleum Aviation Fuels, Marine & Automotive Unleaded and Diesel Fuels, Oil Based Fluids Salt Water and Fresh Water.

Features

• Interchangeable spouts are compatible with a wide range of air frames, minimizing fuel spills often caused by the poor compatibility of traditional gravity refueling nozzles.
• Compact, lightweight, and space saving, ideal for operations where available space is minimal or restricted, such as arming and refueling points, deployments, aviation refueling, Naval vessel refueling operations and refueling from tanker trucks
• The connection coupling can be modified or changed to suit any requirements -from a "universal" coupling to a cam-lock or threaded connection.
• The kit is compatible with a wide range of airframes including Sikorsky, Boeing, Bell , Airbus and Eurocopter, including external fuel tanks.
• The nozzle assembly is POL compliant and contains no reactive materials

Kit Includes

• (1) Nozzle fitted with 2 in. hose connection
• Dust cap, MIL Spec Clamp/Pin and Bonding Wire
• (1) Short Spout
• (1) Straight Spout
• (1) Angled Spout
• (1) External Fuel Tank Spout
• Trimcast case with fuel resistant foam inserts

Specifications

• Refueling kit includes: Sturdy case, Nozzle body, 4 compatible spouts, grounding clamp w/ cord, and dust cap
• Spouts are interchangeable and self-aligning
• Nozzle: Automatic shut-off handle with safety lock out device
• Fuel source connection end: CLA-VAL 2 in. genderless coupling
• POL Compliant
• No reactive materials
• Can use with F34/FSII and F44 Fuels
