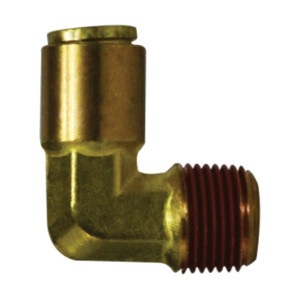

Midland Industries 690604 Brass D.O.T. Push-to-Connect 90° Male Elbow, 3/8 in. PTC x 1/4 in. MNPT

Midland Industries 690604 Brass D.O.T. Push-to-Connect 90° Male Elbow, 3/8 in. PTC x 1/4 in. MNPT Description

The Midland Industries 690604 Brass D.O.T. Push‑to‑Connect 90° Male Elbow is a durable and reliable fitting designed for secure directional changes in air and pneumatic applications. Constructed from high‑quality brass, it provides excellent corrosion resistance and dependable performance in demanding environments. The 3/8‑inch push‑to‑connect end ensures quick installation without tools, while the 1/4‑inch Male NPTF threaded end delivers a tight, leak‑resistant seal. Rated for 150 psi and suitable for temperatures ranging from ‑40 to 200°F, this elbow fitting is engineered to meet D.O.T. standards for transportation‑related pneumatic systems.

Features

• Durable Brass Construction: Built from brass to provide strength, corrosion resistance, and long‑term reliability.
• Easy Push‑to‑Connect Operation: Allows fast, tool‑free installation with a secure 3/8‑inch PTC connection.
• Precision Threaded NPTF End: Features a 1/4‑inch Male NPTF thread for a tight and dependable seal.
• D.O.T.-Rated Performance: Meets requirements for transportation and pneumatic applications requiring dependable air system fittings.

Specifications

• Brand: Midland Industries
• Connection Size: 3/8 in. x 1/4 in.
• Connection Type: Push‑to‑Connect x Male NPTF
• Fitting Type: 90‑deg Elbow
• Material: Brass
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 200°F
• Thread Size: 1/4 - 18
