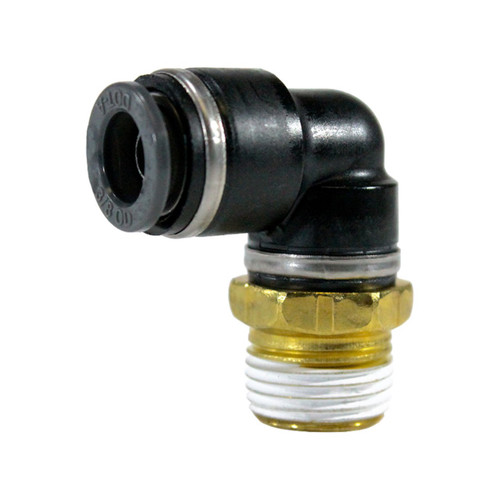

Midland Industries 690404SC D.O.T. Push-to-Connect 90° Elbow, Composite, 1/4 in. PTC x 1/4 in. MNPT

Midland Industries 690404SC D.O.T. Push-to-Connect 90° Elbow, Composite, 1/4 in. PTC x 1/4 in. MNPT Description

The Midland Industries 690404SC D.O.T. Push‑to‑Connect 90° Elbow is a high‑performance composite fitting designed for efficient directional changes in air brake and pneumatic systems. Engineered with a durable, UV‑ and vibration‑resistant composite body, this elbow provides long‑lasting reliability in demanding mobile and industrial environments. Its push‑to‑connect design allows fast, secure tubing insertion, while the 1/4‑inch male NPT connection ensures a tight, leak‑resistant threaded seal. Fully compliant with D.O.T. and SAE standards, this elbow includes a positional swivel feature that enables precise alignment after installation, improving flexibility and efficiency during assembly. With a 145‑psi pressure rating and wide temperature tolerance, it is well‑suited for rigorous pneumatic applications.

Features

• D.O.T. and SAE Compliant: Meets regulatory requirements for air brake and pneumatic system use.
• One‑Touch Push‑to‑Connect: Enables quick, tool‑free tube insertion to reduce installation time.
• Durable Composite Construction: UV‑ and vibration‑resistant body enhances long‑term performance.
• Positional Swivel Design: Allows the male threaded end to be positioned after installation for optimal alignment.

Specifications

• Connection Size: 1/4 in.
• Connection Type: Push‑to‑Connect x MPT
• Fitting Type: 90‑deg Elbow
• Material: Composite
• Pressure Rating: 145 psi
• Temperature Rating: -40 to 140 °F
• Thread Size: 1/4 - 18

Downloads

Product Literature (PDF Download)
