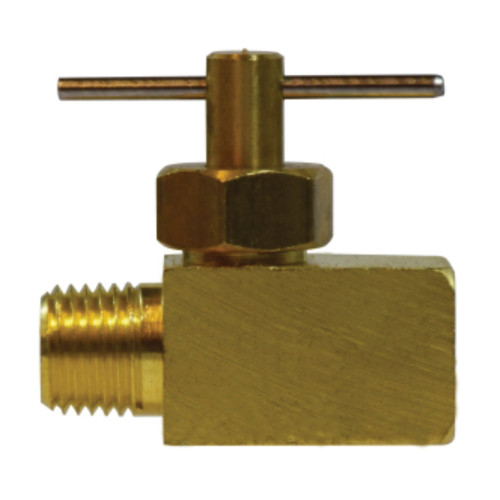

Midland Industries 46061 Brass Needle Valve, 1/4 in. MIP x 1/4 in. FIP

Midland Industries 46061 Brass Needle Valve, 1/4 in. MIP x 1/4 in. FIP Description

The Midland Industries 46061 Brass Needle Valve is designed for precise flow control in low‑pressure fluid and gas applications. Constructed with a durable brass body, this valve provides reliable performance and corrosion resistance in industrial, commercial, and mechanical systems. Its needle-style design allows for accurate regulation of flow, making it well suited for metering and shutoff functions. Featuring a 1/4-inch MIP x 1/4-inch FIP connection, steel pin handle operation, and NBR sealing, this valve supports consistent operation across a wide temperature range while maintaining dependable pressure handling.

Features

• Brass Body Construction: Offers durability, corrosion resistance, and long service life.
• Precision Needle Valve Design: Enables accurate flow control and adjustment.
• Pin Handle Operation: Provides smooth and controlled valve operation.
• Wide Temperature Capability: Designed for use in both low and high temperature environments.

Specifications

• Body Material: Brass
• Connection Type: MIP x FIP
• Dimensions: 1.60 in. L
• Domestic/Import: Import
• Handle Material: Steel
• Lead-Free/Contains Lead: Contains Lead Nominal
• Size: 1/4 in.
• Operator Type: Pin Handle
• Pressure Rating: 150 psi
• Seal Material: NBR
• Temperature Rating: -45 to 250°F
• Top to Inlet Center: 1.14 in.
• Warranty: 1 Year

Downloads

Product Literature (PDF Download)
