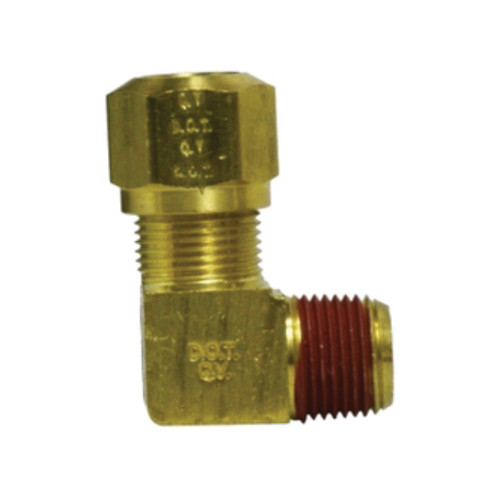

Midland Industries 38091 90° Brass Elbow, 1/4 in. Tube OD x 1/8 in. MNPT Description

The Midland Industries 38091 Brass 90° Elbow is designed to provide a durable and reliable directional change between nylon tubing and threaded pipe systems. Manufactured from solid brass, this elbow fitting features a 1/4‑inch tube outside diameter connection and a 1/8‑inch male NPTF threaded end, allowing for secure integration into pneumatic and fluid handling systems. Designed for use with SAE J844 Type A and B nylon tubing, this elbow supports dependable sealing, consistent flow, and long‑term performance. Its corrosion‑resistant brass construction and wide temperature tolerance make it suitable for industrial, automotive, and mechanical applications requiring precise right‑angle connections.

For Use With: SAE J844 type A and B NT nylon tubing

Features

• Solid Brass Construction: Provides long‑lasting durability and corrosion resistance.
• 90° Elbow Configuration: Allows efficient right‑angle direction changes in tubing systems.
• Precision Tube and Thread Interface: Ensures secure fitment and reliable sealing performance.
• SAE J844 Tubing Compatibility: Designed for Type A and B NT nylon tubing applications.

Specifications

• Connection Size: 1/4 in. x 1/8 in.
• Connection Type: Tube | MNPT
• Fitting Type: 90° Elbow
• Material: Brass
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 200°F
• Thread Size: 7/16-24
