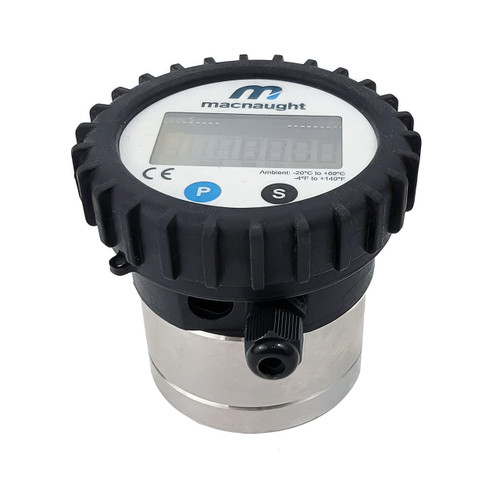

Macnaught MX19F-2SE 3/4 in. Flowmeter, 2 - 18.5 GPM, 2,000 PSI Alum/PPS/FKM w/Integral Digital Display, 4-20mA Output

Macnaught MX19F-2SE 3/4 in. Flowmeter, 2 - 18.5 GPM, 2,000 PSI Alum/PPS/FKM w/Integral Digital Display, 4-20mA Output

SKU:
MACMX19F2SE
Manufacturer:
Macnaught
Flow-Rate:
2 to 18.5 GPM
Product Type:
Flow-Meter
Pressure Rating:
2000 PSI
Temperature Range:
-40°F to 176°F (-40°C to 80°C)
Inlet Size:
3/4 in.
Outlet Size:
3/4 in.
Accuracy:
±.5%
Weight:
8.00 LBS
$2,046.96
Adding to cart… The item has been added

Description

Macnaught MX Oval Gear Flow Meters are Industrial Grade Positive Displacement Flow Meter devices. MX Meters provide true volumetric measurement of liquid thru the meter - not of scale, but actual flow measurement.

MX Meter bodies are machined of solid billet, the Rotor shafts are hardened alloy and the Rotor design is unmatched for accuracy and reliability. MX PD Meters are for clean fluids, only - no gases or solids-laden liquids.

Features

  • All MX Meters Provide a Standard .5% Accuracy with .03% Repeatability of Flow
  • Designed for Precise Volumetric Clean Process Fluid Measurement
  • No Flow Conditioning - put the meter where you need it

Specifications

  • Port Size: 3/4 in.
  • Port Connection: NPT Threads
  • Display: PRA (LCD 12 mm Display) with outputs
  • Flow Rate: 2 - 18.5 GPM
  • Temperature Range: -40° F to 176° F (-40° C to 80° C)
  • Pressure: 2000 PSI
  • Meter Body: Aluminum
  • Meter Cap: Aluminum
  • Rotors: PPS/PEEK
  • HV Rotors: PPS
  • Rotor Shafts: SS 316
  • Rotor Bushes: NA
  • O-Rings: FKM
  • Output: 4-20mA Output

Downloads

Product Literature (PDF Download)

Product Manual (PDF Download)
