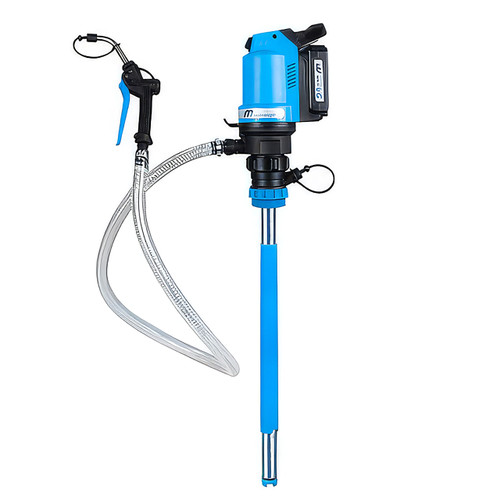

Macnaught BOP205 16-55 Gallon Universal Oil Pump Kit

Description

This Battery Powered 16 - 55 Gallon Oil Dispenser Pump kit has everything needed to pump Oil, ATF or Coolants. Powerhead, Stem with 5ft of 3/4 in. hose with On Demand Nozzle, 18V Li-Ion Battery, Battery Charger, 1 Pail Adapter. Designed for 16-Gallon or 55-Gallon Drums up to 140W. Place the BOP205 into any 16 - 55 gallon oil drum, flick the Powerhead on, and engage the on-demand flow nozzle. It's that easy! Eliminates the need for hand pumping or air operation.

Features

• On Demand control nozzle
• Portable Powerhead (Powers multiple stems)
• Sealed wetted parts
• Separate Powerhead - multiple oils with one Powerhead 18V rechargeable 2.0Ah battery delivers up to 40GAL
• Oils up to SAE140 / ISO680, ATF and Coolants
• Flow rates up to 1.5+GPM
• No more pumping by hand to reduce fatigue
• No air required, eliminates costly air pumps
• No funnels needed, reducing spillage

Specifications

• Flowrate Low Viscosity Oil: 4.5 l/min (0W-40 @ 20 deg C)
• Flowrate High Viscosity Oil: 2.4 l/min (85W-140 @ 20 deg C)
• Flowrate DEF/Urea: 7 l/min @ 20 deg C
• Temperature Range: 32° F to 104° F (0° C to 40° C)
• Container Size: Models available to suit 60ltr - 205ltr containers
• Fluid Compatibility: Engine oil, gear oil, hydraulic oil (oils up to SAE140 viscosity), ATF, engine coolant and DEF Urea
• Max Viscosity: From SAE 0W40 up to SAE 85W-140
• Self-Priming: Yes
• Hose: 60L/205L - (19mm x 2m) 6.5ft wire reinforced PVC
• Wetted Components: Nitrile rubber, Stainless steel, Aluminum, Nylon, Polypropylene, PPS
• Relative Humidity: 50% - 90%
• Hook Color: Grey

Downloads

Product Literature (PDF Download)

Product Manual (PDF Download)
