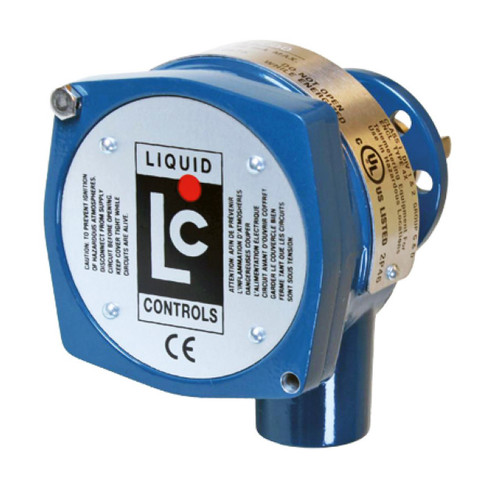

Liquid Controls POD1 0413 Pod Assembly, Fork Drive, Nitrile CE

Liquid Controls POD1 0413 Pod Assembly, Fork Drive, Nitrile CE Description

The Liquid Controls POD1 0413 Pod Assembly is a high‑performance pulse output device engineered to convert the rotary motion of Liquid Controls positive displacement flowmeters into accurate electronic pulses that directly correspond to volumetric measurement. Designed as a direct‑mount replacement for standard mechanical registration, the POD delivers high‑resolution, square‑wave pulses that integrate seamlessly with a wide range of electronic monitoring systems, including LectroCount and MultiLoad SMP controllers. Constructed with 316 stainless steel wetted components and featuring no dynamic seals, the POD assembly ensures long‑term reliability with minimal maintenance. Its weatherproof UL/CSA Type 4X and IP66‑rated housing provides robust protection in demanding industrial environments. Capable of bidirectional operation, long‑distance pulse transmission, and quadrature output, the POD1 0413 is built to meet stringent Weights and Measures requirements while offering dependable accuracy and durability.

Features

• High‑Resolution Pulse Output: Provides 100 pulses per channel per revolution with square‑wave single or dual‑channel output for precise volumetric measurement.
• Durable Weatherproof Construction: Designed with Type 4X/IP66 housing, corrosion‑resistant materials, and no dynamic seals to prevent leakage and ensure long‑term reliability.
• Wide Compatibility and Integration: Directly mounts to Liquid Controls meters and supports electronic monitoring platforms such as LectroCount and MultiLoad SMP.
• Robust Electrical Performance: Operates on 9–30 VDC, supports long‑distance pulse transmission, and offers optional open‑drain FET output for advanced control systems.

Specifications

• Coating: Corro‑Coat PE 74‑141 Polyester
• Compatibility: Fork drive, bidirectional flow
• Conductivity: EMI/RFI compliant
• Construction: Aluminum alloy housing
• Current: 50 mA maximum supply
• Environment: UL/CSA Type 4X, IP66
• FET Rating: 30 VDC
• Humidity: 0–100% noncondensing
• Model: POD1 0413
• Output: 100 PPR quad, current sinking
• Pulse Distance: Up to 5,000 ft
• Seals: Nitrile
• Shock: 50 Gs for 10 ms
• Temperature Range: –40 to 176 °F
• Voltage: 9–30 VDC
• Wetted Parts: 316 stainless steel
