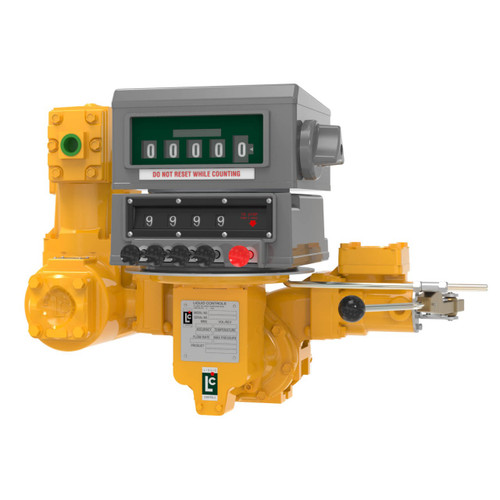

Liquid Controls M7K1-MECH-NP#1 2 in. Flanged 100 GPM Meter and Mechanical Register w/ Preset Valve, Strainer & Air Eliminator

Liquid Controls M7K1-MECH-NP#1 2 in. Flanged 100 GPM Meter and Mechanical Register w/ Preset Valve, Strainer & Air Eliminator Description

The Liquid Controls M7K1‑MECH‑NP#1 Meter is a high‑accuracy rotary positive displacement meter engineered for custody transfer and precise industrial liquid measurement. Built on the proven M‑7® platform, this model delivers reliable performance with low pressure drop, exceptional repeatability, and a wide viscosity handling range. Its robust cast‑aluminum construction, nitrile seals, mechanical preset valve, standard 40‑mesh strainer, and mechanical air eliminator make it suitable for refined petroleum, aviation fuels, LPG, petrochemicals, and diesel exhaust fluid (DEF). The meter conforms to NIST accuracy requirements and is designed for long service life with minimal internal wear, thanks to its no metal‑to‑metal contact measuring chamber.

Features

• High‑Accuracy Measurement: Delivers exceptional accuracy with repeatability as low as 0.05% using mechanical registration, meeting NIST and international weights‑and‑measures standards.
• Low Pressure Drop Operation: Engineered to perform effectively under gravity flow or pump pressure, supporting a wide variety of industrial system setups.
• Wide Viscosity Handling: Accurately meters liquids ranging from under 30 SSU to 1,500,000 SSU, enabling use with light solvents, fuels, heavy oils, and high‑viscosity industrial fluids.
• Robust Industrial Construction: Cast‑aluminum housing with Ni‑Resist, aluminum, and stainless‑steel internal components ensures durability in demanding applications.
• Flexible Installation Options: Compatible with multiple elbows and fittings for custom or stock configurations, ensuring adaptability to many installation environments.

Specifications

• Air Eliminator: Mechanical
• Approval: NIST
• Bearing Material: Ni‑Resist
• Check Valve: N/A
• Construction: Cast aluminum
• Flow Direction: L‑R
• Flange Size: 2 in.
• Linearity: ±0.125% to ±0.5% depending on range
• Max Pressure: 150 psi
• Mesh: 40
• Model: M7K1‑MECH‑NP#1
• Rating: 100 GPM
• Registration: Mechanical, 1/10 gal
• Seal Material: Nitrile
• Software: N/A
• Strainer: Standard
• Temperature Range: -40°F to 185°F
• Valve Outlet: Up
• Valve Type: Mechanical
