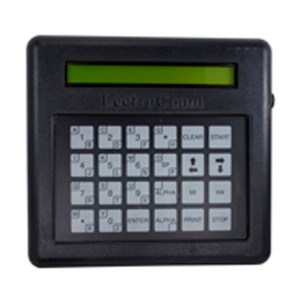

Liquid Controls Lap Pad w/ Adapter for LCR II in M-7 & M-10 Meters

The Liquid Controls E4030-12 Lap Pad with an Adapter(81514)for the LCR II in Liquid Control's M-7 and M-10 petrol meters. Before the LCR-II the register can be setup and calibrated, the initial settings must be entered. To do this, you will need to use a lap pad. The lap pad connects to a 9-pin female connector on a lap pad adapter. The lap pad adapter connects to the printer and data cable.

To operate the lap pad, terminal J10 must have the jumper in the RS-232 position.

Features

• LectroCount Electronic Registers Lap Pad VT-100 terminal emulator that programs and displays all operational functions of an LCR-II.
• Large, tactile feel, easy to operate alpha/numeric keyboard.
• Dual-line prompting display (40 characters per line) is backlit for easy viewing.
• Prompting function provides operator assistance when needed (alternate languages available)
• Umbilical cable permits operation within 9-ft. radius of LCR-II
