Latrobe Foundry Aluminum Counterstruck Square Head Plugs-Threaded

SKU:
N/A
Manufacturer:
Type:
Plug
Material:
Aluminum
Weight:
0.02 LBS
Please Choose An Option To See Price
$5.69 - $74.83

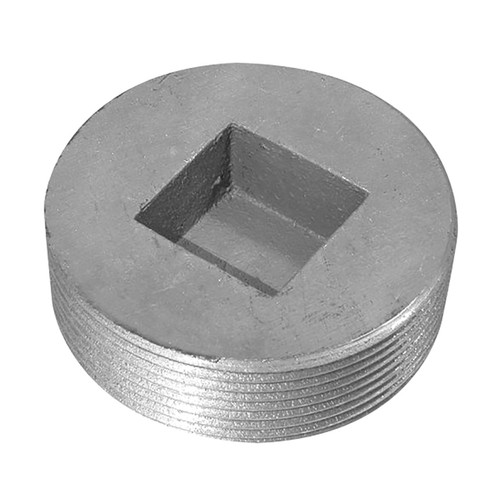

Latrobe Foundry Aluminum Counterstruck Square Head Plugs-Threaded

Latrobe Foundry Aluminum Counterstruck Square Head Plugs-Threaded

SKU:
N/A
Manufacturer:
Type:
Plug
Material:
Aluminum
Weight:
0.02 LBS
Please Choose An Option To See Price
$5.69 - $74.83
The image shown is for illustration purposes only. The actual product may vary.

Latrobe Foundry fittings are right-hand threaded. Fittings are random tested at 120 pounds of air pressure under water, for a normal surface condition rating of 150 pounds of pressure. The fittings have a general conformance with dimensional standard MIL-DTL-52618-E and pipe threads are in accordance with ANSI/ASME B1.20.1. Constructed of Aluminum alloy 356-F, not anodized. Individual fittings are not marked with alloy or pressure data. Used in a variety of businesses, including agricultural, chemical, construction and marine industries.

Specifications

SizeThreads/InchDrill
3/8 in. 18 37/64 in. (0.578 in.)
1/2 in. 14 23/32 in. (0.922in.)
3/4 in. 14 59/64 in. (0.922 in.)
1 in. 11-1/2 1-5/32 in. (1.156 in.)
1-1/4 in. 11-1/2 1-1/2 in. (1.5 in.)
1-1/2 in. 11-1/2 1-47/64 in. (1.734 in.)
2 in. 11-1/2 2-7/32 in. (2.219 in.)
2-1/2 in. 8 2-5/8 in. (2.625 in.)
3 in. 8 3-1/4 in. (3.25 in.)
