Kuriyama Tiger Green 6 in. EPDM Suction Hose Assembly w/ Female Coupler Ends

Made in the USA
SKU:
Please choose an option below
Manufacturer:
Kuriyama
Size:
6 in.
Ends:
Female Coupler x Female Coupler
Pressure:
40 PSI
Temperature Range:
-40°F to 160°F (-40°C to 71.1°C)
Material:
PVC
Weight:
34.92 LBS
$347.60 - $3,087.15
Made-To-Order (MTO) item is non-returnable/non-refundable/non-cancellable unless there is a defect or warranty issue. Please allow time for assembly before shipping.
Adding to cart… The item has been added

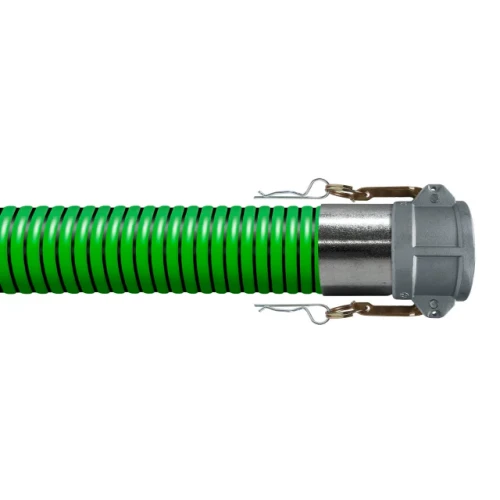

Kuriyama Tiger Green 6 in. EPDM Suction Hose Assembly with Female Coupler Ends

Kuriyama's Tiger Green 6 in. EPDM Suction Hose with C x C Ends (TG600X100) is a premiere septic and wastewater handling hose in the industry. These suction hoses use the best EPDM materials available to provide ideal flexibility, durability and chemical resistance. These specific materials even remain flexible in below-zero temperature applications. The Tiger Green series of hoses is lightweight, making it easy to handle and the smooth bore construction eliminates build-up inside. Shop the JME site for the best selection of Kuriyama Tiger Green hose assemblies today.

Assembled with Female Coupler x Female Coupler ends.

We cut and couple all hose assemblies in-house. If you do not see the length you need or would like a different type of end fitting, please give us a call and we will be happy to build a custom assembly to meet your requirements.

Features

  • Made in the USA.
  • Tiger Green hoses only use the best EPDM material to provide ideal flexibility, durability, and chemical resistance.
  • Have up to 22% more flexibility than the competition.
  • These hoses are more flexible coming off the truck and are easier to handle.
  • The rigid helix design of the hose protects the hose tube from wear, allowing the hose to easily slide over rough surfaces and around corners.
  • The convoluted outer cover adds increased hose flexibility.
  • The "Cold-Flex" material continues to remain flexible in below-zero applications.

Specifications

  • Series: Tiger Green
  • Size: 6 in.
  • Hose OD: 6.85 in.
  • Hose Weight Per Foot: 3.07 lbs./ft.
  • Working Pressure @ 68°F: 30 PSI
  • Working Pressure @ 104°F: 20 PSI
  • Vacuum Pressure @ 68°F: 28 in. Hg
  • Vacuum Pressure @ 104°F: 24 in. Hg
  • Minimum Bend Radius @ 68°F: 20 in.
  • Temperature Range: -40°F to 160°F (-40°C to 71°C)
  • Color: Green
  • Material: EPDM
  • Ends Material: Aluminum
  • Ends Type: Female Coupler x Female Coupler

Applications

  • Agriculture liquid fertilizer
  • Irrigation lines
  • Liquid manure handling
  • Marine bilge discharge
  • Pumps, trash
  • Pumps, rental and construction dewatering
  • Septic & wastewater handling
  • Water suction - standard duty
  • Frack solution removal

Downloads

Specification Sheet (PDF Download)
