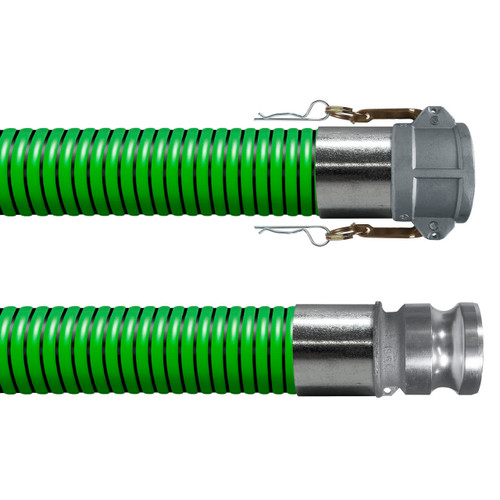

Kuriyama Tiger Green 3 in. EPDM Suction Hose Assembly w/ Female Coupler x Male Adapter Ends

Kuriyama Tiger Green 3 in. EPDM Suction Hose Assembly with Female Coupler x Male Adapter Ends

Kuriyama Tiger Green EPDM suction hose is made with EPDM rubber with a polyethylene helix cover making it both flexible and having superior chemical resistance. Tiger Green is lightweight making it easy to handle and the smooth bore construction eliminates build-up inside.

Service Temperature Range: -40°F to 160°F (-40°C to +71°C)

Note: Hose assemblies come with a standard 3 in. Part C female coupling on one end and 3 in. Part E male adapter on the other.

Features

• Superior Rubber Compounds: Tigerflex uses only the best available EPDM compounds, which provide the ideal combination of light-weight, flexibility, durability and chemical resistance
• Superior Flexibility: Up to 22% more flexible than the competition, especially in sub-zero weather - Tiger Green Hose is more flexible coming off the truck and easier to handle than other similar hoses
• Easy Slide Helix – Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces and around corners - Easy-to-handle
• Convoluted Outer Cover: Provides increased hose flexibility
• "Cold-Flex" Materials: Hose remains flexible in sub-zero temperatures
• Made in the USA

Specifications

• Series: Tiger Green TG - EPDM Suction Hose
• Inside Diameter (ID): 3 in. (76.2 mm.)
• Outside Diameter (OD): 3.60 in. (91.5 mm.)
• Length: 10 - 30 ft. - Other Lengths Available - Please Call 1-800-333-3331 for More Information
• Hose Ends: 3 in. Female Coupler x 3 in. Male Adapter (CxE)
• Construction: EPDM Tube with Polyethylene Helix
• Working Pressure:
• @ 68°F: 45 PSI
• @ 104°F: 30 PSI
• Vacuum Rating:
• @ 68°F: Full
• @ 104°F: 26 in. Hg
• Min. Bending Radius (@ 68°F): 7 in.
• Service Temperature Range: -40°F to 160°F (-40°C to +71°C) - Actual service temperature is application dependent
• Weight: 1.14 lbs./ft.

Applications

• Agriculture Liquid Fertilizers
• Irrigation Lines
• Liquid Manure Handling
• Marine Bilge Discharge
• Pumps, Rental and Construction Dewatering
• Pumps, Trash
• Septic and Wastewater Handling
• Used Frack Solution Removal
• Water Suction - Standard Duty
