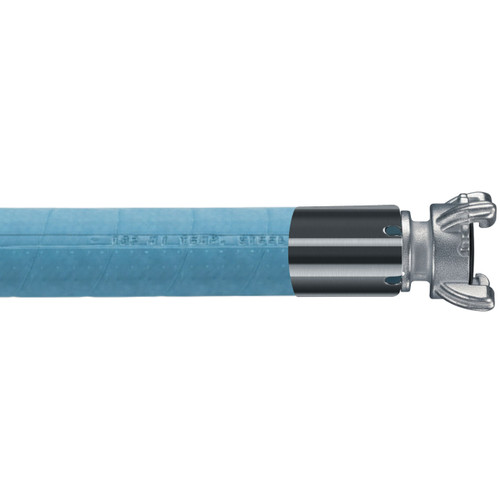

Kuriyama T132AE 1 1/2 in. High Temp Braided Steel Wire Air Hose w/ 4-Lug Universal Couplers

Kuriyama's T132AE Series air hose is designed for heavy-duty applications requiring high performance and reliability. Constructed with a black chlorobutyl tube resistant to oil mist and high temperatures, reinforced with high tensile steel wire braids for strength, and covered with durable blue EPDM for abrasion and ozone resistance, this hose is built to last in demanding environments like mines, quarries, and construction sites. It's engineered for maximum safety and longevity where long service life is essential.

This high-pressure compressed air hose operates at a constant pressure of 1200 PSI and can withstand service temperatures from -40°F to +300°F, with peak temperatures reaching +450°F. Designed for use with crimped steel fittings, this hose delivers robust performance and dependable service in industrial settings.

Features

• High-pressure performance (up to 1200 PSI) for demanding compressed air applications.
• Wide temperature range (-40°F to +300°F) with tolerance for peak temperatures up to +450°F.
• Durable construction with resistance to abrasion, ozone, and oil mist for long service life.
• Designed for use with crimped steel fittings for secure and reliable connections.

Specifications

• Series: T132AE
• ID: 1 1/2 in (38 mm)
• OD: 2.13 in (54 mm)
• Min. Bending Radius: 7 1/2 in (190.5 mm)
• Weight: 1.40 lbs/ft (0.636 kg/m)
• Tube Material: Black Chlorobutyl (resistant to oil mist (maximum 6 parts/million) and high temperature)
• Reinforcement Material: High tensile steel wire braids
• Cover Material: Blue EPDM (abrasion and ozone resistant, pin pricked)
• Working Pressure (Constant): 1200 PSI (80 Bar)
• Service Temperature Range: -40°F (-40°C) to +300°F (+150°C) (peaks of 450°F (+232°C))
• Branding: ALFAGOMMA – ITALY – 132 STEEL AIR (embossed)
• Tube Construction: Black Chlorobutyl tube with high tensile steel wire braids and blue EPDM cover
• Coupling: Designed for use with crimped steel fittings
