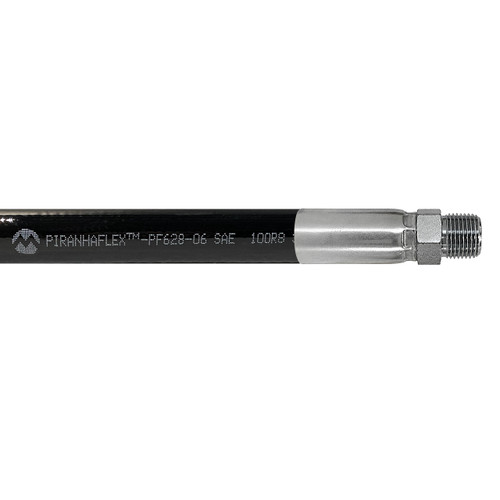

Kuriyama Piranhaflex PF628 1/4 in. Hydraulic Hose Assembly w/ Male NPT Ends

Description

Piranhaflex PF628 Series hoses are designed for high-pressure hydraulic applications, including hydraulic oil and lubrication lines on industrial equipment and vehicles. They are well-suited for construction, agriculture, material handling, and other demanding equipment environments. These hoses can also be used with hydraulic tools.

Assembled with Male NPT x Male NPT ends

We cut and couple all hose assemblies in-house. If you do not see the length you need or would like a different type of end fitting, please give us a call and we will be happy to build a custom assembly to meet your requirements.

.

Features

• Abrasion Resistant - Polyurethane cover outlasts rubber versionsin applications where the hose rubs against abrasive surfaces.
• Lightweight - Approximately 37% lighter weight than similar rubberhoses.
• Pin Pricked Cover (PF628 Series Only) - Allows for the escape ofgasses, if necessary, eliminating risk of cover blistering.
• Low Temperature Flex - Designed to flex at temperatures as low as-65°F; well suited for cold storage applications.

Specifications

• Brand: Kuriyama
• Part Number: PF628-04
• Hose Only Weight: 0.07 lbs/ft
• Series: PF628
• ID Size: 1/4 in. (6.5 mm)
• OD Size: 0.485 in. (12.3 mm)
• Length: Per Ft.
• Service Temperature Range: -65°F to +200°F (-54°C to 93°C)
• Working Pressure: 5000 PSI
• Color: Black
• Tube Material: Copolyester
• Cover Material : Conductive Pin pricked, abrasion resistant polyurethane
• Reinforcement Material: Braided aramid fibers
• Ends: Male NPT x Male NPT
• Compatible Fluids: Hydraulic Fluids, Petroleum
• Min Bend Radius: 2 in. (50 mm)
• Standards / Compliance: ANSI 92.2 (vehicle mounted aerial devices), SAE 100R8, SAE J517
