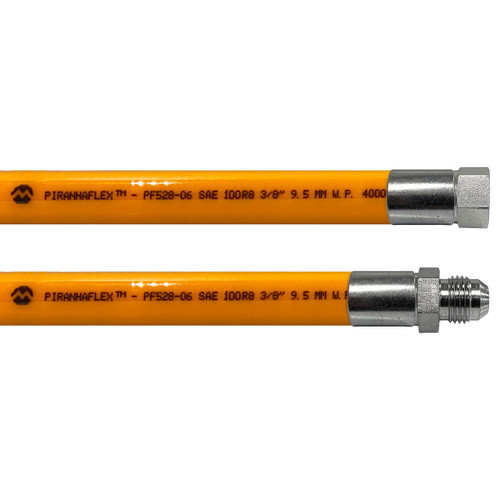

Kuriyama Piranhaflex PF528NC 3/8 in. Hydraulic Hose Assembly w/ Male JIC Seat x Female JIC Seat

Description

Piranhaflex PF528NC Series hoses are designed for high-pressure hydraulic applications, including hydraulic oil and lubrication lines. They are well-suited for industrial equipment and vehicles used in construction, agriculture, material handling, and other demanding work environments. The PF528NC Series is also suitable for aerial equipment and hydraulic tool applications, making it a versatile choice for rugged hydraulic systems.

Assembled with Male JIC Seat x Female JIC Seat

We cut and couple all hose assemblies in-house. If you do not see the length you need or would like a different type of end fitting, please give us a call and we will be happy to build a custom assembly to meet your requirements.

Features

• Kink Resistant Technology - Proprietary design shown to exhibit 50% better resistance to kink initiation, and 17% less force to bend, versus competitive 100R8 hose in comparison testing.
• Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
• Lightweight - Approximately 24% lighter weight than similar rubber hoses.
• Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.

Specifications

• Brand: Kuriyama
• Part Number: PF528NC-06
• Hose Only Weight: 0.154 lbs/ft
• Series: PF528NC
• ID Size: 3/8 in. (9.7 mm)
• OD Size: 0.75 in. (19.1 mm)
• Length: Per Ft.
• Service Temperature Range: -65°F to +200°F (-54°C to 93°C)
• Working Pressure: 4000 PSI
• Color: Orange
• Tube Material: Nylon
• Cover Material : Non-conductive, Pin pricked, abrasion resistant polyurethane
• Reinforcement Material: Braided high tensile strength fibers
• Ends: Male JIC Seat x Female JIC Seat
• Compatible Fluids: Hydraulic Fluids, Petroleum
• Min Bend Radius: 2 1/2 in. (64 mm)
• Standards / Compliance: REACH, SAE 100R8
