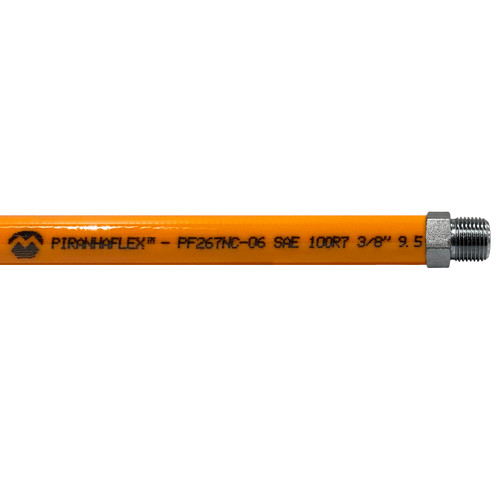

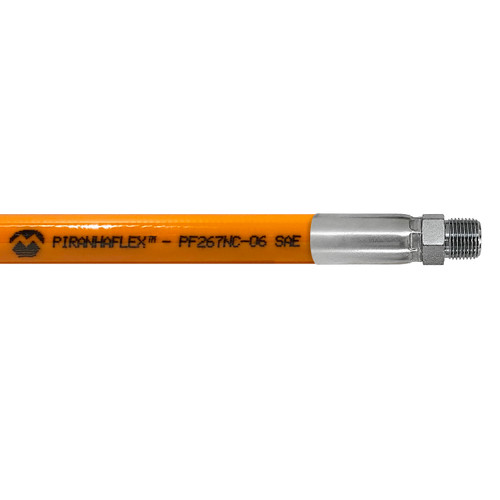

Kuriyama Piranhaflex PF267NC 3/8 in. Hydraulic Hose Assembly w/ Male NPT Ends

Kuriyama Piranhaflex PF267NC 3/8 in. Hydraulic Hose Assembly w/ Male NPT Ends Description

Piranhaflex PF267NC Series hoses are designed for hydraulic oil and lubrication line applications on industrial equipment and vehicles, including construction, agriculture, and material handling machinery. The PF267NC Series is also suitable for aerial equipment, making it a versatile option for demanding hydraulic systems. Built for reliable fluid transfer, these hoses help support consistent performance in rugged working environments.

Assembled with Male NPT x Male NPT ends

We cut and couple all hose assemblies in-house. If you do not see the length you need or would like a different type of end fitting, please give us a call and we will be happy to build a custom assembly to meet your requirements.

Features

• Slither® Cover - Slick, Slither cover helps hose slide through tight spaces such as sheaves, pulleys and bundles. Especially helpful routing through long lengths of hose bundles on aerial equipment such as scissor lifts and bucket trucks.
• Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
• Lightweight - Approximately 37% lighter weight than similar rubber hoses. Low Temperature Flex - Designed to flex at temperatures as low as -65°F; well suited for cold storage applications.
• Pin Pricked Cover (PFP354 Series Only) - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
• Maximum 140 ºF (+60 ºC) for water and phosphate-ester based hydraulic fluids

Specifications

• Brand: Kuriyama
• Part Number: PF267NC-06
• Hose Only Weight: 0.12 lbs/ft
• Series: PF267NC
• ID Size: 3/8 in. (9.7 mm)
• OD Size: 0.651 in. (16.5 mm)
• Length: Per Ft.
• Service Temperature Range: -65°F to +200°F (-54°C to 93°C)
• Working Pressure: 2250 PSI
• Color: Orange
• Tube Material: Copolyester
• Cover Material : Non-conductive, Pin pricked, abrasion resistant polyurethane
• Reinforcement Material: Braided high tensile strength fibers
• Ends: Male NPT x Male NPT
• Compatible Fluids: Hydraulic Fluids, Petroleum
• Min Bend Radius: 2 in. (51.0 mm)
• Standards / Compliance: REACH, SAE 100R7, SAE J517

Downloads

Specification Sheet (PDF Download)

Product Literature (PDF Download)
