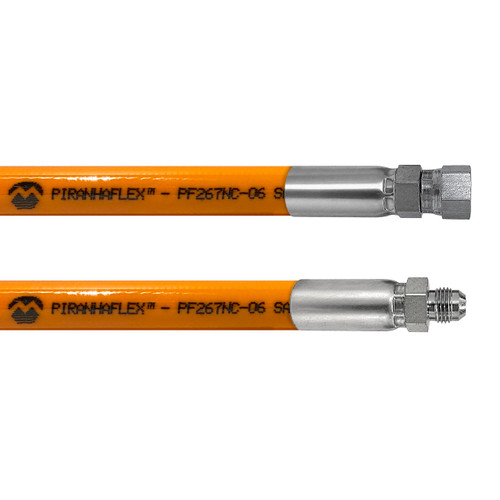

Kuriyama Piranhaflex PF267NC 1/2 in. Hydraulic Hose Assembly w/ Male JIC Seat x Female JIC Seat

Description

Piranhaflex PF267NC Series hoses are designed for hydraulic oil and lubrication line applications on industrial equipment and vehicles, including construction, agriculture, and material handling machinery. The PF267NC Series is also suitable for aerial equipment, making it a versatile option for demanding hydraulic systems. Built for reliable fluid transfer, these hoses help support consistent performance in rugged working environments..

Assembled with Male JIC Seat x Female JIC Seat

We cut and couple all hose assemblies in-house. If you do not see the length you need or would like a different type of end fitting, please give us a call and we will be happy to build a custom assembly to meet your requirements.

Features

• Kink Resistant Technology - Proprietary design shown to exhibit53% better resistance to kink initiation, and 16% less force to bend,versus competitive 100R7 hose in comparison testing.
• Abrasion Resistant - Polyurethane cover outlasts rubber versionsin applications where the hose rubs against abrasive surfaces.
• Low Temperature Flex - Designed to flex at temperatures as low as-65°F; well suited for cold storage applications.
• Meets ANSI A92.2 (PF267NC Series Only) - Meets ANSI insulatingrequirement for aerial devices used in areas of high electricity.Tested to less than 50 microamperes leakage when subjected to75,000 volts/ft. for 5 min.

Specifications

• Brand: Kuriyama
• Part Number: PF267NC-08
• Hose Only Weight: 0.17 lbs/ft
• Series: PF267NC
• ID Size: 1/2 in. (13.1 mm)
• OD Size: 0.834 in. (21.2 mm)
• Length: Per Ft.
• Service Temperature Range: -65°F to +200°F (-54°C to 93°C)
• Working Pressure: 2000 PSI
• Color: Orange
• Tube Material: Copolyester
• Cover Material : Non-conductive, Pin pricked, abrasion resistant polyurethane
• Reinforcement Material: Braided high tensile strength fibers
• Ends: Male JIC Seat x Female JIC Seat
• Compatible Fluids: Hydraulic Fluids, Petroleum
• Min Bend Radius: 3 in. (76.0 mm)
• Standards / Compliance: ANSI 92.28 (vehicle mounted aerial devices), REACH, SAE 100R7, SAE J517
