Kunkle SS Pressure Relief Valve 1/2 in. FNPT Inlet x 1/2 in. FNPT Outlet, 150 PSI, 10.2 GPM

Description

All-Stainless Liquid Relief Valve with FNPT Connections

The Kunkle Model 140 is a general-utility liquid relief valve constructed entirely of stainless steel: body, bonnet, disc, nozzle, and spring. This makes it ideal for non-code liquid systems where corrosion resistance and fluid purity are a priority. This valve is set to 150 psig with a rated capacity of 10.2 GPM at 25% accumulation, and features a ½ in. FNPT inlet and ½ in. FNPT outlet. The angle-lapped seat and PTFE O-ring and gasket wetted components provide tight shutoff and resist leaching into sensitive process fluids such as deionized water or water-glycol solutions used in liquid cooling systems.

The compact size suits installations with limited space, including coolant distribution units, pump skids, and manifold assemblies. Back pressure up to 50 psig (3.45 barg) is permissible, though back pressure over 10% of set pressure increases set point on a one-to-one basis and reduces capacity. Each valve is factory tested for pressure setting and leakage prior to shipment.

Key specifications:

• Inlet / outlet: ½ in. FNPT x ½ in. FNPT
• Set pressure: 150 psig; pressure range available: 10–300 psig (0.69–20.7 barg)
• Rated capacity: 10.2 GPM at 25% accumulation
• Temperature range: -60°F to 406°F (-51°C to 208°C)
• Body and spring material: stainless steel (nozzle SS A582-303, bonnet/disc SS A743-CF8, spring SS A313-302)
• Wetted sealing materials: PTFE (o-ring and gasket)
• Maximum allowable back pressure: 50 psig (3.45 barg)
• Service: non-code liquid

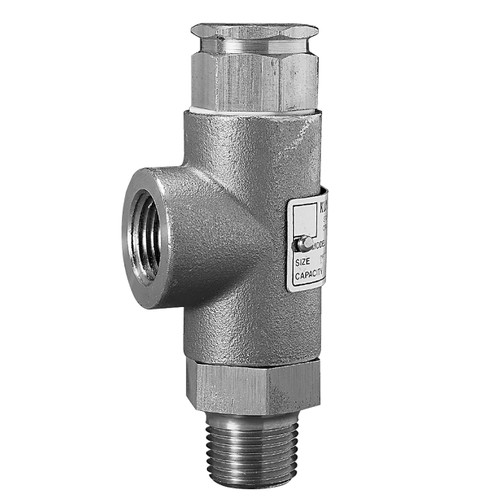

Note: The image depicts the catalog standard inlet option, but this listing is for the Female NPT inlet option.

Custom PSI selections available. Call JME sales specialists at 1 (800) 333-3331

Specifications

• Body Material: Stainless Steel
• Spring Material: Stainless Steel
• Wetted Materials: PTFE
• Temperature Range: -60° to 406° F (-51° to 208° C)
• Pressure: 150 PSI
• Capacity: 10.2 GPM
• Inlet: 1/2 in. FNPT
• Outlet: 1/2 in. FNPT
